Same model may have multiple batches, images only for reference.

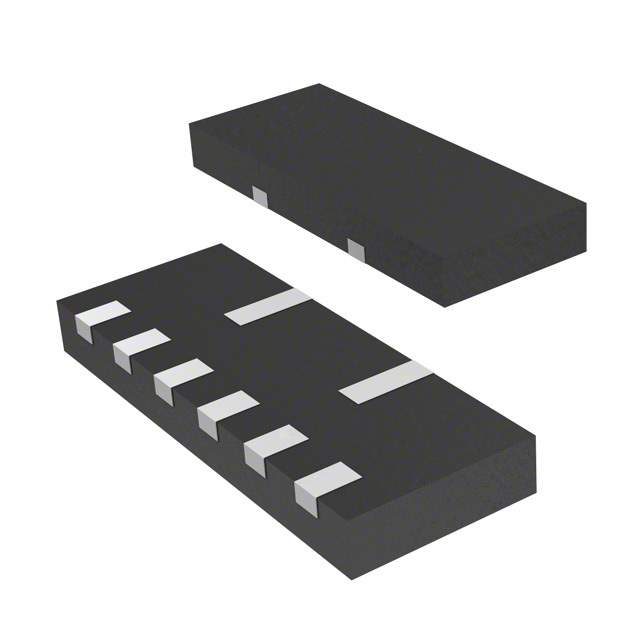

RCLAMP0506T.TCT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP0506T.TCT

Part No RCLAMP0506T.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC
Datasheet
RCLAMP0506T.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 6
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6.5V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 75W
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.7pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP3313P6T
Win Source Part Number 027235-RCLAMP0506T.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RCLAMP0506T.TCT CAD Model

Description

The RCLAMP0506T.TCT is a circuit protection component manufactured by Semtech Corporation.

  • Popularity: highly popular
  • Supply and Demand Status: sufficient
  • Applications: HDMI applications
  • Mounting: SMD (SMT)
  • Channels: six unidirectional channels
  • Features: power line protection
  • Stand-off Voltage (Vwm): 5V (Max)
  • Peak Pulse Current(Ippm): 5A (8/20μs)
