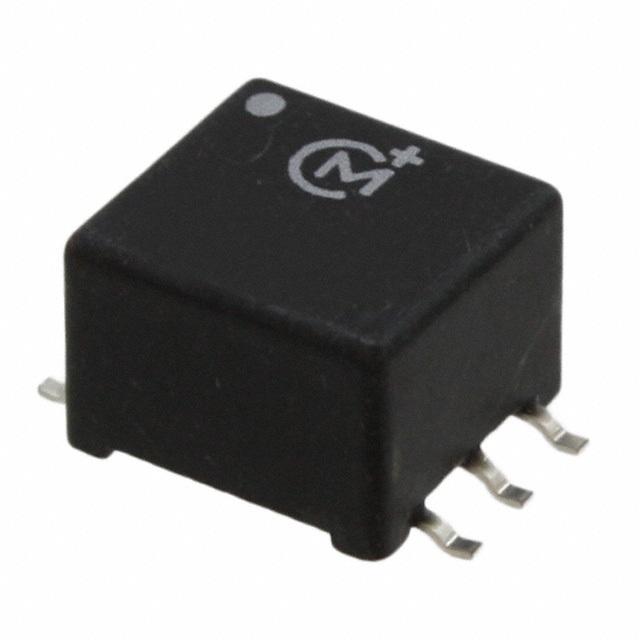

Same model may have multiple batches, images only for reference.
78601/3JC-R Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

78601/3JC-R

Part No 78601/3JC-R
Manufacturer Murata Power Solutions Inc.
Catalog Pulse Transformers
Description PULSE XFMR 1:1 150UH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Murata Power Solutions Inc.
Series 786J
Package Tape & Reel
Product Status Active
Transformer Type General Purpose
Inductance 150µH
ET (Volt-Time) 6VµS
Mounting Type Surface Mount
Size / Dimension 0.375" L x 0.354" W (9.52mm x 9.00mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Base Product Number 78601
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 29431-78601/3JC-R
Ultra Librarian 3D Model Ultra Librarian 78601/3JC-R CAD Model

Description

78601/3JC-R Description

The 78601/3JC-R is synonymous with cutting-edge engineering excellence that meets varied electronic and mechanical requirements. Its innovative design makes it a preferred choice among engineers and designers.

  • State-of-the-art design
  • High endurance and reliability
  • Optimized power use

Applications and Projects

  • Automated control systems
  • Renewable energy solutions
  • Healthcare electronics
  • IoT devices

Features and Benefits

  • User-friendly implementation
  • High performance for critical applications
  • Environmental sustainability focus
