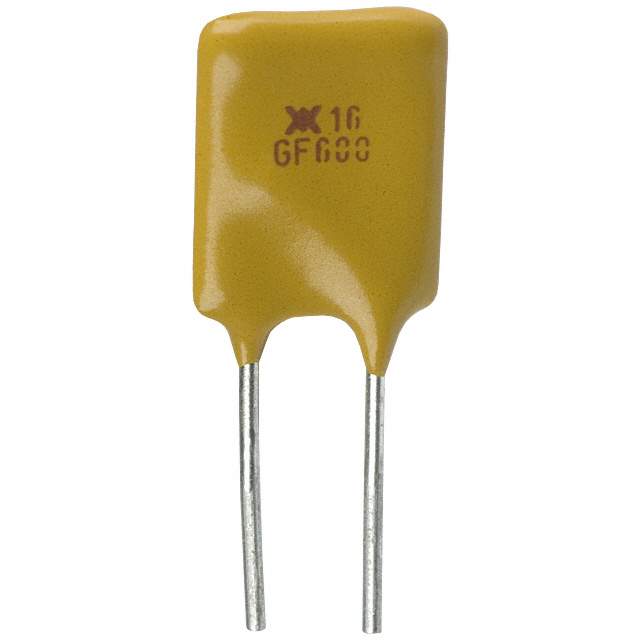

Same model may have multiple batches, images only for reference.

RGEF600-2

Name: RGEF600-2
Brand: Littelfuse Inc.
SKU: 1315568
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RGEF600-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	RGEF600-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, RGEF
Package	Tape & Reel (TR),Tape & Reel Cut Tape (CT)
Type	Polymeric
Voltage - Max	16V
Current - Max	100 A
Current - Hold (Ih) (Max)	6 A
Current - Trip (It)	10.2 A
Time to Trip	3.3 s
Resistance - Initial (Ri) (Min)	10 mOhms
Resistance - Post Trip (R1) (Max)	28 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.402" L x 0.098" W (10.20mm x 2.50mm)
Height - Seated (Max)	0.673" (17.10mm)
Lead Spacing	0.199" (5.05mm)
Approval Agency	CSA, TUV, UL
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1315568-RGEF600-2
Ultra Librarian 3D Model	Ultra Librarian RGEF600-2 CAD Model

Alternative Products

Description

The Littelfuse Inc. 1315568-RGEF600-2 is a PolySwitch resettable fuse that is part of the Circuit Protection category. Littelfuse Inc.

Type: Polymeric
Packaging: Tape and Reel (TR) / Tape and Reel Cut Tape (CT)
Seated Height: 0.673 inches (17.10mm)
Lead Spacing: 0.199 inches (5.05mm)
Maximum Voltage: 16V
Maximum Current: 100A
Hold Current: 6A
Trip Current: 10.2A
Time to Trip: 3.3 seconds
Mounting: Through-Hole
Package/Case: Radial, Disc
Temperature Range: -40°C to 85°C
Initial Resistance: 10mOhms
Post-Trip Resistance: 28mOhms
Approvals: CSA, TUV, UL
