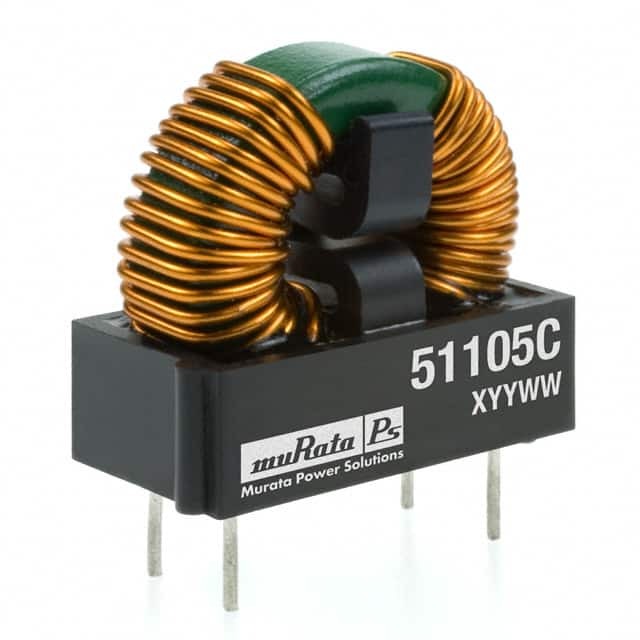

51105C
Same model may have multiple batches, images only for reference.

51105C

Part No 51105C
Manufacturer Murata Power Solutions Inc.
Catalog Common Mode Chokes
Description CMC 3.3A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Murata Power Solutions Inc.
Series 5100
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 3.3A
DC Resistance (DCR) (Max) 38mOhm
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.709" L x 0.394" W (18.00mm x 10.00mm)
Height (Max) 0.945" (24.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number 51
Standard Package 60 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 847669-51105C
Ultra Librarian 3D Model Ultra Librarian 51105C CAD Model

Description

The 847669-51105C is a Common Mode Choke Filter from Murata Power Solutions Inc.

  • Series: 5100
  • Function: Power Line Filter
  • Voltage Rating: AC, DC
  • Current Rating: 3.3A
  • Packaging: Tray
  • Mounting Type: Through Hole, Vertical
  • Number of Pins: 4
  • Size: 0.709" L x 0.394" W (18.00mm x 10.00mm)
  • Height: 0.945" (24.00mm)
  • DC Resistance (DCR): 38mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • Standard Package: 60 pcs
