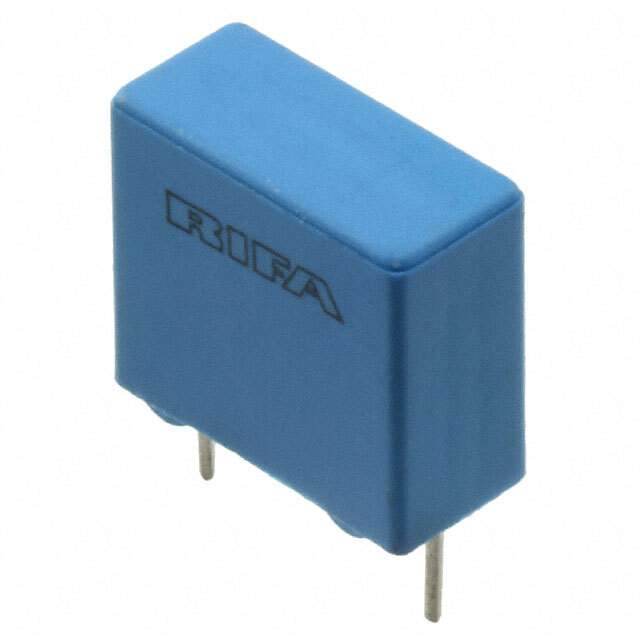

PHE426HD7100JR06L2 Real Image
Same model may have multiple batches, images only for reference.

PHE426HD7100JR06L2

Part No PHE426HD7100JR06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 5% 250VDC RADIAL / 1 µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PHE426
Package Bulk
Capacitance 1 µF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.024" L x 0.276" W (26.00mm x 7.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Base Product Number PHE426
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names F426DF105J250C,399-5961
Standard Package 216
Win Source Part Number 1005795-PHE426HD7100JR06L2
Ultra Librarian 3D Model Ultra Librarian PHE426HD7100JR06L2 CAD Model

Description

The Kemet PHE426HD7100JR06L2 is a film capacitor designed for use in discrete semiconductor products manufactured by Kemet.

  • Series: PHE426
  • Package: Radial
  • Capacitance: 1 µF
  • Tolerance: ±5%
  • Voltage Rating: AC 160V and DC 250V
  • Applications: DC link, DC filtering; high frequency, switching; high pulse, DV/DT
  • Package Height (Seated): 0.650" (16.50mm)
  • Lead Spacing: 0.886" (22.50mm)
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Through Hole
  • Temperature Range - Operating: -55°C to 105°C
