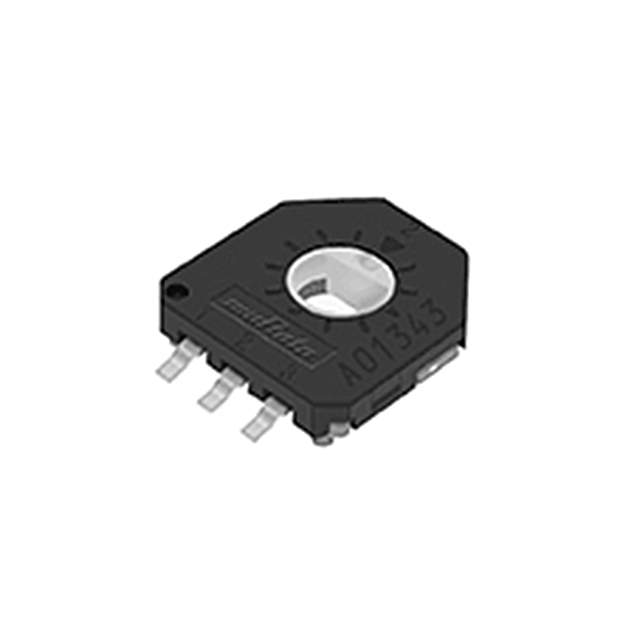

SV03A103AEA01R00 Real Image
Same model may have multiple batches, images only for reference.

SV03A103AEA01R00

Part No SV03A103AEA01R00
Manufacturer Murata Electronics North America
Catalog Position Sensors - Angle, Linear Position Measuring
Description Total Resistance Value
Datasheet
SV03A103AEA01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Murata Electronics North America
Series SV03
For Measuring Rotary Position
Technology Resistive
Rotation Angle - Electrical, Mechanical 0° ~ 320°, (0° ~ 333.3°)
Output Analog Voltage
Actuator Type Hole for Shaft
Linearity ±2%
Resistance (Ohms) 10k
Resistance Tolerance ±30%
Mounting SMD
Termination Style SMD (SMT) Tab
Operating Temperature Range -40°C ~ 125°C
Win Source Part Number 1262616-SV03A103AEA01R00
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Family Name SV03A103AEA01R00
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SV03A103AEA01R00 CAD Model

Description

The Murata Electronics North America SV03A103AEA01R00 is a resistive technology rotary position sensor designed for measuring rotary position. It has a hole for shaft actuator type and a linear range of -.

  • Technology: Resistive
  • Sensor Type: Rotary Position
  • Actuator Type: Hole for Shaft
  • Linear Range: -
  • Temperature Range: -40°C to 125°C
  • Rotation Angle: 0° to 320°, (0° to 333.3°)
  • Output: Analog voltage
  • Resistance Value: 10k ohms
  • Resistance Tolerance: ±30%
  • Linearity: ±2%
  • Mounting Type: SMD (SMT) tab
  • Applications: Sensors and transducers
  • Estimated EOL Date: 2024
