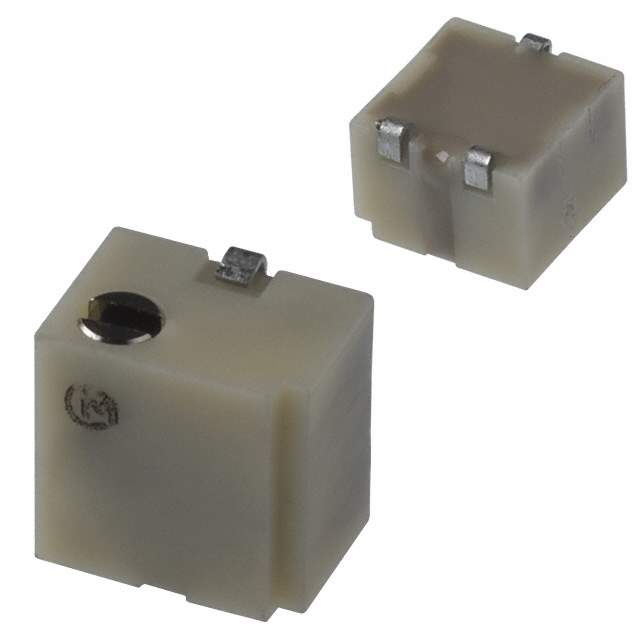

PVG5H501C01R00 Real Image
Same model may have multiple batches, images only for reference.

PVG5H501C01R00

Part No PVG5H501C01R00
Manufacturer Murata Electronics North America
Catalog Potentiometers, Variable Resistors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Depth 4.9 mm
Lead Free Lead Free
Length 4.8 mm
Max Operating Temperature 125 °C
Military Standard Not
Min Operating Temperature -55 °C
Number of Turns 11
Packaging Tape and Reel
Resistance 500 Ω
RoHS Compliant
Termination J-Hook
Tolerance 10 %
Weight 60 mg
Width 4.8 mm
Win Source Part Number 1180637-PVG5H501C01R00
Categories Potentiometers,Variable Resistors
Manufacturer Murata Electronics North America
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PVG5H501C01R00 CAD Model

Description

The Murata Electronics North America PVG5H501C01R00 is a 500Ω potentiometer with a tolerance of 10%. PVG5H501C01R00 is from Murata Electronics North America.

  • Resistance: 500Ω
  • Tolerance: 10%
  • Dimensions (L x W x D): 4.8mm x 4.8mm x 4.9mm
  • Weight: 60mg
  • Number of Turns: 11
  • Termination: J-hook
  • Lead-Free: yes
  • RoHS Compliant: yes
  • Supply and Demand Status: limited
