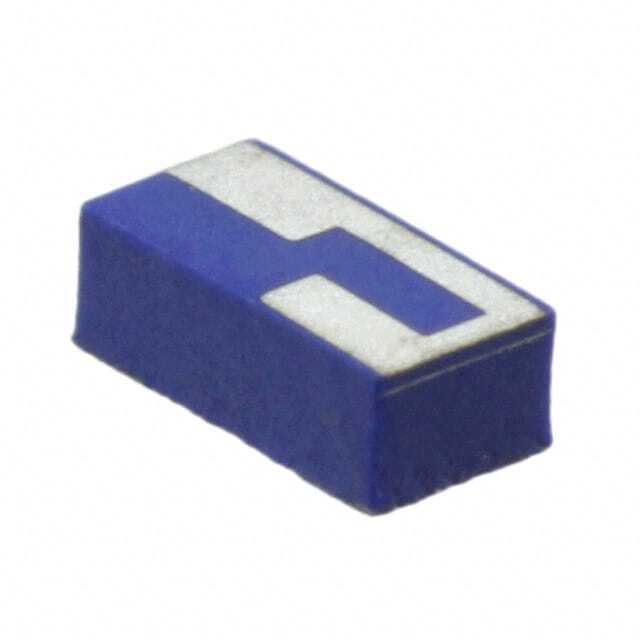

Same model may have multiple batches, images only for reference.
ANT3216LL15R1575A
Same model may have multiple batches, images only for reference.

ANT3216LL15R1575A

Part No ANT3216LL15R1575A
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 1.575GHZ CHIP SOLDER SMD
Datasheet
ANT3216LL15R1575A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 22 Weeks
Features 1.575GHz GPS Chip RF Antenna 1.55GHz ~ 1.6GHz 2.01dBi Solder Surface Mount
Manufacturer PulseLarsen Antennas
Series 3216
Package Reel - TR
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.4040
Other Part Number CAN4311712151583K, 311-1543-6, 311-1543-1, 311-1543-2
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865741-ANT3216LL15R1575A
Ultra Librarian 3D Model Ultra Librarian ANT3216LL15R1575A CAD Model

Description

The supply and demand status of this component is limited. It is an RF/IF and RFID electronic component that belongs to the 3216 series.

  • Frequency: 1.575GHz
  • Type: GPS Chip RF Antenna
  • Frequency Range: 1.55GHz ~ 1.6GHz
  • Gain: 2.01dBi
  • Mounting Type: Solder Surface Mount
  • Supply and Demand Status: Limited
