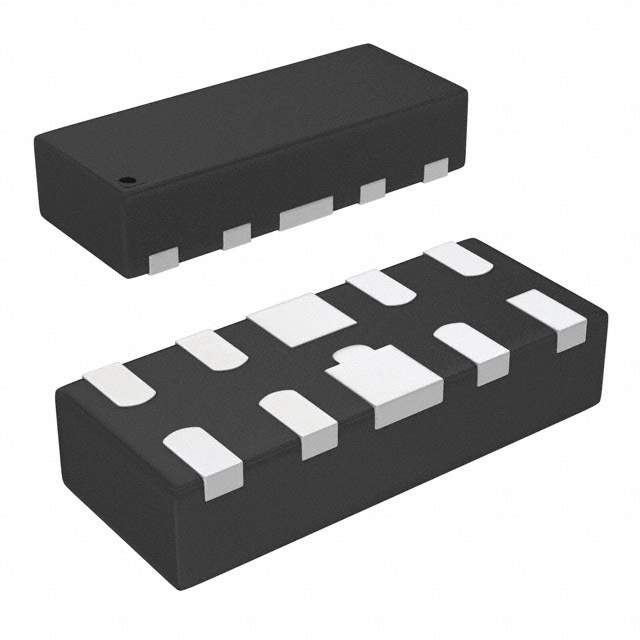

LXES2TBCC4-028 Real Image
Same model may have multiple batches, images only for reference.

LXES2TBCC4-028

Part No LXES2TBCC4-028
Manufacturer Murata Electronics North America
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM SMD
Datasheet
LXES2TBCC4-028 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.5V
Minimum Breakdown Voltage 6V
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 10-DFN (2.5x1)
Win Source Part Number 1064676-LXES2TBCC4-028
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LXES2TBCC4-028 CAD Model

Description

The LXES2TBCC4-028 is a steering (rail to rail) electronic component manufactured by Murata Electronics North America.

  • Mounting Type: SMD (SMT)
  • Channels: 4 unidirectional
  • Features: Power line protection
  • Category: Circuit protection
  • Temperature Range: -40°C to 85°C (TA)
  • STAND-OFF Voltage (Vwm): 5.5V
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: - with no peak pulse current (Ippm) and power dissipation - Pd
  • Supply and Demand Status: Balanced.
