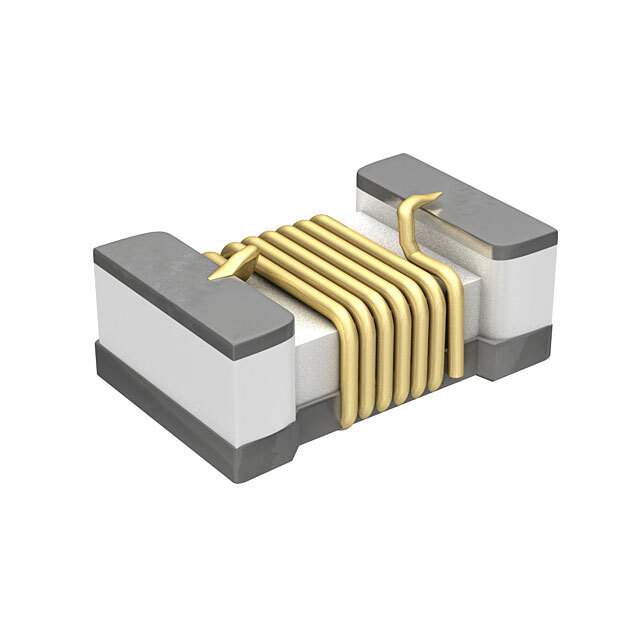

LQW04AN20NH00D Real Image
Same model may have multiple batches, images only for reference.

LQW04AN20NH00D

Part No LQW04AN20NH00D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 20NH 210MA 560MOHM SMD / 20 nH Unshielded Wirewound Inductor 210 mA 560mOhm Max 0302 (0804 Metric)
Datasheet
LQW04AN20NH00D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series LQW04
Package Tape & Reel (TR)
Type Wirewound
Inductance 20 nH
Tolerance ±3%
Current Rating (Amps) 210 mA
Shielding Unshielded
DC Resistance (DCR) 560mOhm Max
Q @ Freq 15 @ 250MHz
Frequency - Self Resonant 5GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting SMD (SMT)
Package / Case 0302 (0804 Metric)
Supplier Device Package 03015 (0804 Metric)
Dimension 0.031" L x 0.016" W (0.80mm x 0.40mm)
Height - Seated (Max) 0.018" (0.45mm)
Base Product Number LQW04AN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 10,000
Win Source Part Number 960103-LQW04AN20NH00D
Ultra Librarian 3D Model Ultra Librarian LQW04AN20NH00D CAD Model

Description

This electronic component is a fixed inductor of the LQW04 series.

  • Type: Fixed Inductor
  • Series: LQW04
  • Construction: Wirewound and Shielded
  • Height: 0.018 inches (0.45mm)
  • Package: Tape & Reel (TR)
  • Inductance: 20nH
  • Tolerance: ±3%
  • Temperature Range: -55°C to 125°C
  • MSL Level: 1 (unlimited)
  • Current Rating: 210mA
