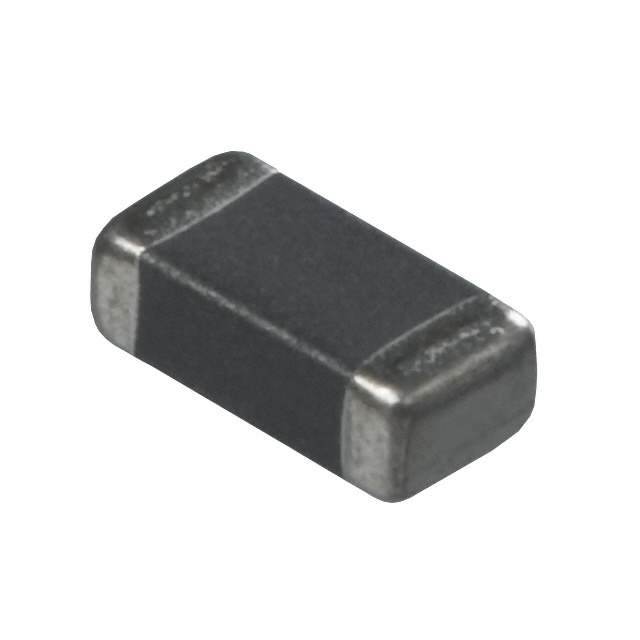

LQM31FN100M00L Real Image
Same model may have multiple batches, images only for reference.

LQM31FN100M00L

Part No LQM31FN100M00L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 10UH 70MA 500 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Type Multilayer
Inductance 10μH
Tolerance ±20%
Current Rating 70mA
DC Resistance (DCR) 500 mOhm Max
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1206 (3216 Metric)
Height - Seated (Max) 0.037" (0.95mm)
Win Source Part Number 072070-LQM31FN100M00L
Ultra Librarian 3D Model Ultra Librarian LQM31FN100M00L CAD Model

Description

The 072070-LQM31FN100M00L is a multilayer inductor manufactured by Murata Electronics North America. This component is obsolete (EOL).

  • Current Rating: 70mA
  • Inductance: 10μH
  • Height (Seated): 0.037" (0.95mm)
  • Tolerance: ±20%
  • Self-Resonant Frequency: 20MHz
  • Test Frequency: 1MHz
  • DC Resistance (DCR): 500 mOhm Max
  • Operating Temperature Range: -40°C to 85°C
  • Package/Casing: 1206 (3216 Metric)
