Same model may have multiple batches, images only for reference.

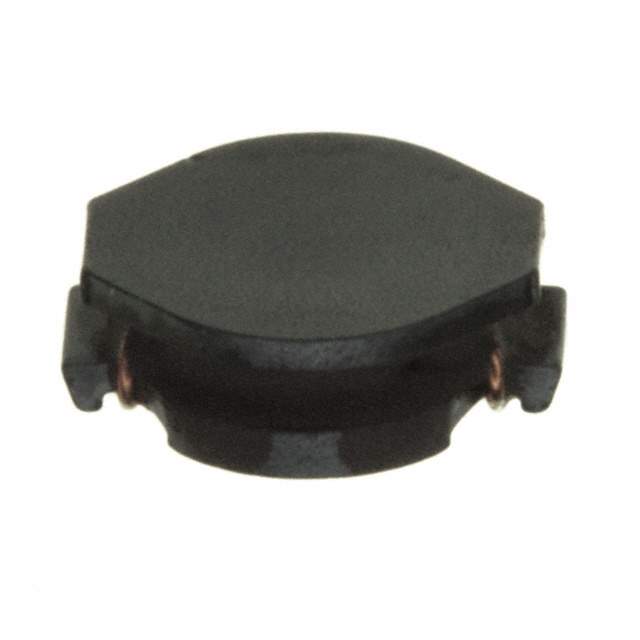

LQH55PN3R3NR0L Real Image
Same model may have multiple batches, images only for reference.

LQH55PN3R3NR0L

Part No LQH55PN3R3NR0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Power Chip Shielded Wirewound 3.3uH 30% 100KHz Ferrite 2A 0.044Ohm DCR 2220 T/R / FIXED IND 3.3UH 2A 44 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Cut Reel
Status Obsolete(EOL)
Type Wirewound
Inductance 3.3μH
Tolerance ±30%
Current Rating 2A
Current - Saturation 2A
DC Resistance (DCR) 44 mOhm
Frequency - Self Resonant 35MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 1057238-LQH55PN3R3NR0L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LQH55PN_R0
Introduction Date October 16, 2008
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LQH55PN3R3NR0L CAD Model

Description

The Murata Electronics North America LQH55PN3R3NR0L is a wirewound type surface mount inductor with an inductance of 3.3μH and a current rating of 2A. It has a height of 0.197" (5.00mm) and a tolerance of ±30%.

  • DC Resistance (DCR): 44 mOhm
  • Self-Resonant Frequency: 35MHz
  • Operating Temperature Range: -40°C to 85°C
  • Lifecycle Status: Obsolete (EOL)
