Same model may have multiple batches, images only for reference.

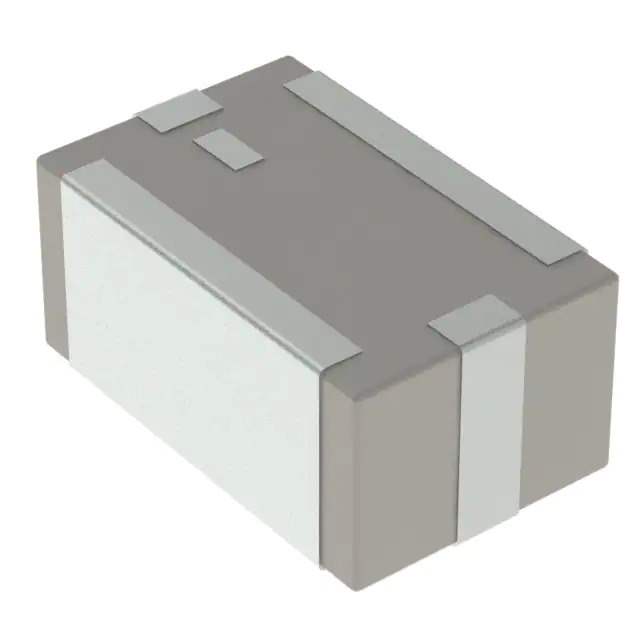

LFB212G45SG8A143 Real Image
Same model may have multiple batches, images only for reference.

LFB212G45SG8A143

Part No LFB212G45SG8A143
Manufacturer Murata Electronics North America
Catalog Ceramic Filters
Description FILTER CER BANDPASS 2.45GHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ceramic Filters
Mfr Murata Electronics North America
Series SG
Package Tape & Reel
Product Status Active
Frequency 2.45GHz Center
Bandwidth 50 MHz
Insertion Loss 2.7dB
Filter Type Band Pass
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 4 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.041" (1.05mm)
Base Product Number LFB21
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 178967-LFB212G45SG8A143
Ultra Librarian 3D Model Ultra Librarian LFB212G45SG8A143 CAD Model

Description

The SG series ceramic filter, part number 178967-LFB212G45SG8A143, is a high-performance component designed for electronic applications.

  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.041" (1.05mm)
  • Frequency: 2.45GHz center
  • Bandwidth: 50 MHz
  • Insertion Loss: 2.7dB
  • Mounting Type: surface mountable
  • Package: 0805 (2012 Metric) with 4 PC pads
  • Standard Package: 4,000 pcs
  • Manufacturer: Murata Electronics North America
