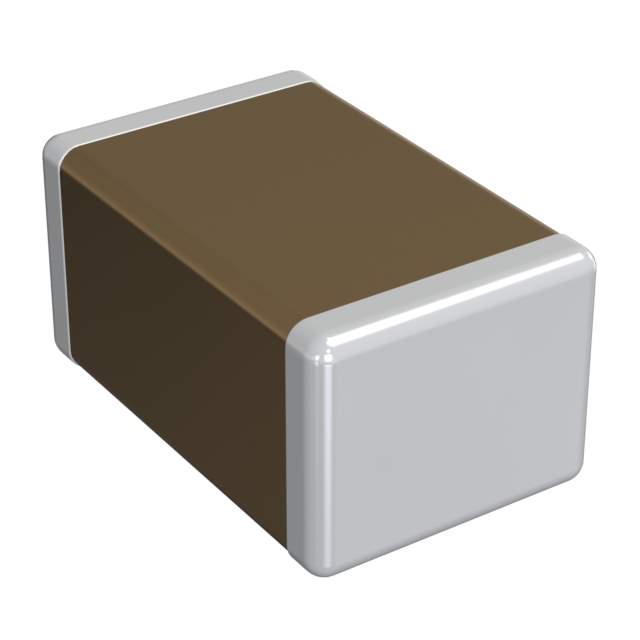

The GRM21BR71A225MA01L is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics. This capacitor is designed for general-purpose applications requiring stable capacitance over a range of temperatures and voltages. It's commonly used in electronic circuits for decoupling, bypassing, and filtering.

Applications

• Decoupling power supply lines in digital circuits.
• Bypassing noise in sensitive analog circuits.
• Filtering unwanted frequencies in signal processing circuits.
• Smoothing voltage fluctuations in power supplies.
• Timing circuits and oscillators.

Features

• High capacitance value.
• Stable capacitance over temperature (X7R dielectric).
• Low equivalent series resistance (ESR) for efficient performance.
• Small size suitable for high-density mounting.
• RoHS compliant.
• Suitable for reflow soldering processes.

Benefits

• Effective noise reduction in electronic circuits.
• Stable and reliable performance across a wide temperature range.
• Improved power supply stability.
• Compact design allows for miniaturization of electronic devices.
• Environmentally friendly due to RoHS compliance.
• Easy integration into automated manufacturing processes.
• Provides clean power delivery to sensitive components.

Additional Details

The GRM21BR71A225MA01L has a capacitance of 2.2 µF with a tolerance of ±20%. It has a voltage rating of 10 VDC. The dielectric material is X7R, which provides stable performance from -55°C to +125°C. The case size is 0805 (2.0 mm x 1.25 mm). This capacitor is surface mount technology (SMT) compatible and is often found in mobile devices, computer motherboards, and other electronic equipment where space is a constraint.
