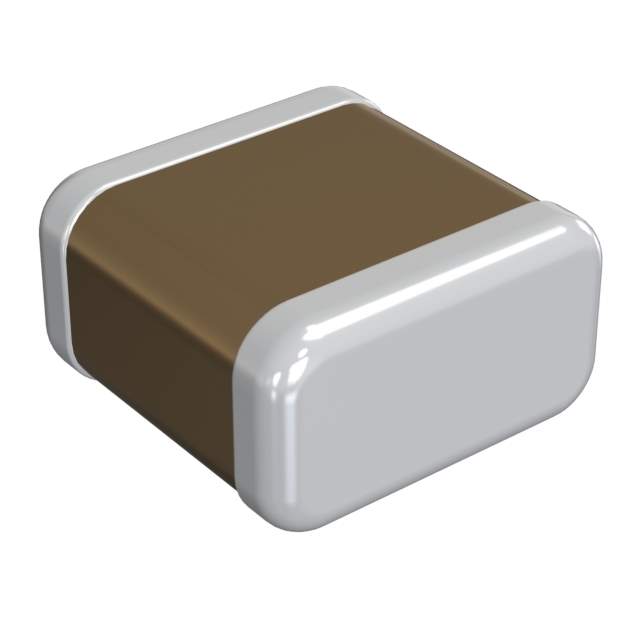

The GRM0335C1E101JD01D is a general-purpose ceramic capacitor manufactured by Murata Electronics North America. It belongs to the GRM series, known for its reliability and compact size. This capacitor is primarily used for decoupling and filtering in electronic circuits.

Applications

• Mobile phones and smartphones
• Wearable devices
• Wireless communication modules
• Consumer electronics
• Audio equipment
• Power supplies

Features

• Capacitance: 100 pF (Picofarads)
• Voltage rating: 25 VDC
• Temperature coefficient: C0G (NP0), indicating high stability over temperature
• Tolerance: ±5%
• Size: 0201 (0.6mm x 0.3mm) - ultra-compact size for high-density mounting
• Termination: Sn (Tin) plating

Benefits

• Stable capacitance over a wide temperature range ensures reliable circuit performance.
• Small size allows for high-density mounting, saving board space.
• Low equivalent series resistance (ESR) minimizes power loss and improves filtering efficiency.
• Excellent high-frequency characteristics make it suitable for high-speed circuits.
• RoHS compliant, meeting environmental regulations.

Additional Details

The GRM0335C1E101JD01D utilizes a ceramic dielectric material, offering excellent insulation and stability. The C0G (NP0) temperature coefficient ensures minimal capacitance change with temperature variations, typically within ±30 ppm/°C. This makes it suitable for critical timing and filtering applications where stability is paramount. Its small 0201 package allows for dense placement on circuit boards, essential for miniaturized electronic devices. The tin plating on the terminations provides good solderability and resistance to oxidation. This capacitor is designed for automated placement using standard pick-and-place equipment. Its reliable performance and compact size make it a popular choice in a wide range of electronic applications, especially in portable and wireless devices where space and stability are crucial.
