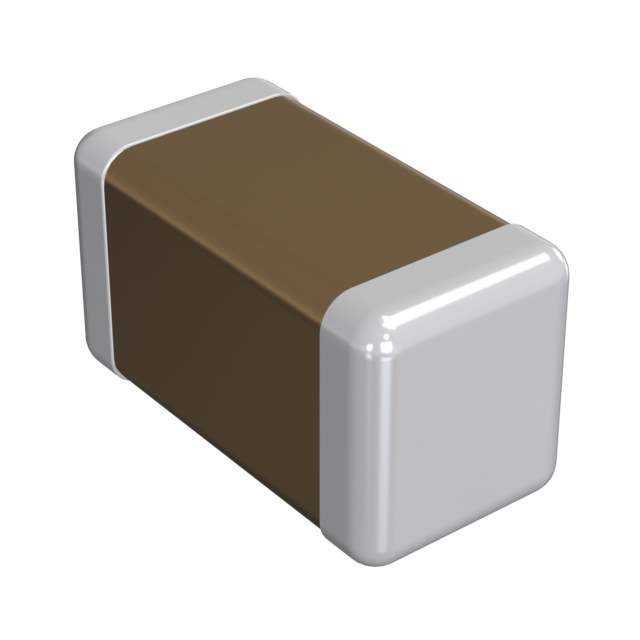

The GCM155R71E104KE02D is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics North America. It is designed for general-purpose applications in electronic circuits, providing stable capacitance and reliable performance. This capacitor is widely used for decoupling, bypassing, and filtering in various electronic devices, especially in compact, high-density applications.

Applications:


• Decoupling: Provides stable power supply decoupling in digital circuits, reducing noise and voltage variations.

• Bypassing: Filters out unwanted AC signals by providing a low impedance path to ground.

• Filtering: Integrated into filtering circuits to remove unwanted frequencies and improve signal quality.

• General Purpose Circuits: Used in a wide variety of general electronic circuits requiring a stable capacitance value.

• Consumer Electronics: Found in smartphones, tablets, and other portable consumer electronics due to its compact size and performance.

Features:


• Multilayer Ceramic Capacitor (MLCC): Offers high reliability and stable capacitance.

• Compact Size: Small 0402 (1005 metric) package for high-density circuit designs.

• Capacitance Value: Provides a capacitance of 0.1µF (100nF).

• Voltage Rating: Rated for 25V, suitable for a wide range of low-voltage applications.

• X7R Dielectric: Offers stable capacitance over temperature and voltage variations.

• RoHS Compliant: Complies with environmental regulations, restricting the use of hazardous substances.

Benefits:


• Improved Circuit Stability: Provides stable capacitance for reliable circuit performance.

• Noise Reduction: Effectively reduces noise and voltage variations in power supply lines.

• Enhanced Signal Quality: Improves signal quality by filtering out unwanted frequencies.

• Compact Design: Allows for high-density circuit designs in small electronic devices.

• Reliable Performance: Offers stable and reliable performance in various operating conditions.

• Environmental Compliance: RoHS compliance ensures environmental safety.

Additional Details:

The GCM155R71E104KE02D uses a X7R dielectric, providing a capacitance variation of ±15% over the temperature range of -55°C to +125°C. The 0402 package size makes it ideal for space-constrained applications. This capacitor is designed for reflow soldering and can withstand the high temperatures encountered during the soldering process. MLCCs like this one are preferred for their small size, low ESR (Equivalent Series Resistance), and ESL (Equivalent Series Inductance), which contribute to their superior performance in high-frequency applications.
