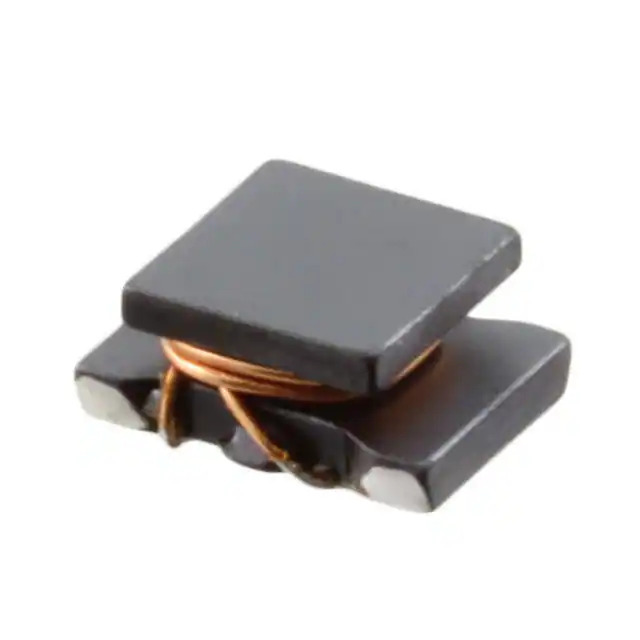

Same model may have multiple batches, images only for reference.
DLW5ATN111TQ2L Murata Electronics North America
Same model may have multiple batches, images only for reference.

DLW5ATN111TQ2L

Part No DLW5ATN111TQ2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 5A 2LN 110 OHM SMD
Datasheet
DLW5ATN111TQ2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Murata Electronics
Series DLW5A
Package Tape & Reel
Product Status Active
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 110 Ohms @ 100 MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 105°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.197" L x 0.142" W (5.00mm x 3.60mm)
Height (Max) 0.093" (2.35mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number DLW5ATN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369388-DLW5ATN111TQ2L
Ultra Librarian 3D Model Ultra Librarian DLW5ATN111TQ2L CAD Model

Description

The DLW5ATN111TQ2L is a common mode choke with a DC resistance of 20mOhm and manufactured by Murata Electronics.

  • DC Resistance: 20mOhm
  • Current Rating: 5A
  • Series: DLW5A
  • Application: Power and Signal Line Filtering
  • Temperature Range: -40°C to 105°C
  • Voltage Rating: 50V DC
  • Mounting: Surface Mount
  • Size: 0.197" L x 0.142" W (5.00mm x 3.60mm)
  • Height: 0.093" (2.35mm)
  • MSL: Level 1 (unlimited)
  • Packaging: Tape and Reel
  • REACH: Unaffected
  • ECCN: EAR99
  • Impedance: 110 Ohms @ 100 MHz
