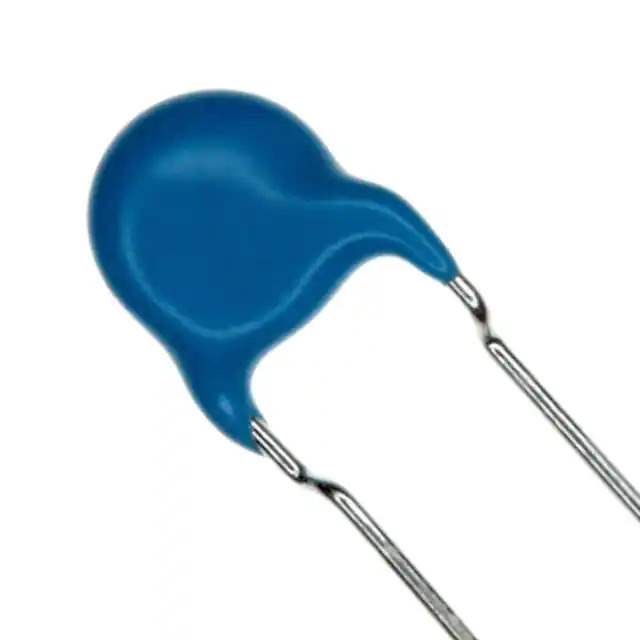

DEA1X3F270JC3B Real Image
Same model may have multiple batches, images only for reference.

DEA1X3F270JC3B

Part No DEA1X3F270JC3B
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Description CAP CER 27PF 3.15KV SL RADIAL / 27 pF ±5% 3150V (3.15kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Murata Electronics North America
Series DEA
Package Bulk
Product Status Obsolete
Capacitance 27 pF
Tolerance ±5%
Voltage - Rated 3150V (3.15kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.236" Dia (6.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Straight
Base Product Number DEA1X3F
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 916873-DEA1X3F270JC3B
Ultra Librarian 3D Model Ultra Librarian DEA1X3F270JC3B CAD Model

Description

The DEA1X3F270JC3B is a ceramic capacitor from Murata Electronics North America's DEA series.

  • Application: General-Purpose
  • Capacitance: 27 pF
  • Tolerance: ±5%
  • Voltage Rating: 3150V (3.15kV)
  • Size: 0.236" diameter (6.00mm)
  • Height: 0.354" (9.00mm)
  • Mounting Type: Through-Hole
  • Package: Radial, disc
  • Temperature Range: -25°C to 125°C
  • Product Status: Obsolete
