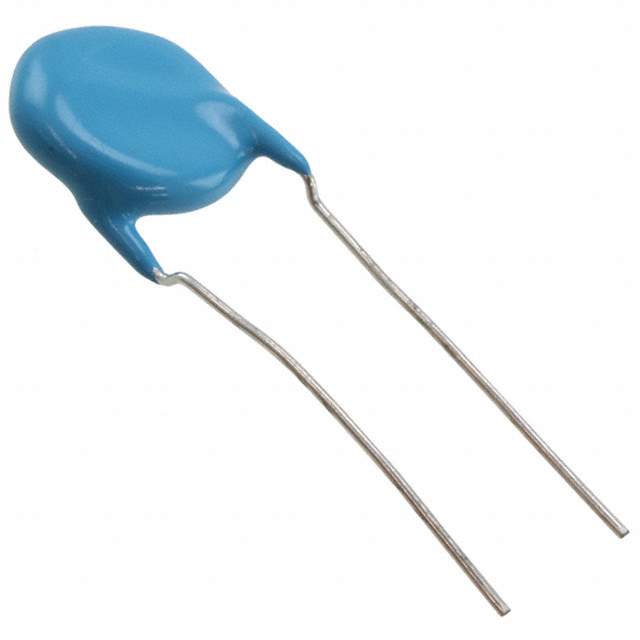

DE1B3KX471KN4AN01F Real Image
Same model may have multiple batches, images only for reference.

DE1B3KX471KN4AN01F

Part No DE1B3KX471KN4AN01F
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Murata Electronics
Series KX
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Capacitance 470 pF
Tolerance ±10%
Voltage - Rated 250VAC
Temperature Coefficient B
Temperature Range - Operating -40°C ~ 125°C
Features Flame Retardant
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.276" Dia (7.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Straight
Base Product Number DE1B3KX
Other Names 490-9505-3,490-9505-1,DE1B3KX471KN4AN01F
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302876-DE1B3KX471KN4AN01F
Ultra Librarian 3D Model Ultra Librarian DE1B3KX471KN4AN01F CAD Model

Description

The KX series ceramic capacitor from Murata Electronics is a flame retardant capacitor that is perfect for safety applications.

  • Capacitance: 470 pF
  • Voltage Rating: 250VAC
  • Tolerance: ±10%
  • Temperature Coefficient: B
  • Packaging: Cut tape (CT) and tape & box (TB)
  • Height: 0.394" (10.00mm) when seated
  • Lead Spacing: 0.394" (10.00mm)
  • Lead Style: Straight
  • Mounting: Through hole
  • Package/Case: Radial, disc
  • Operating Temperature Range: -40°C ~ 125°C
  • Dimensions: 0.276" Dia (7.00mm)
  • Rated: X1, Y1
  • Status: Obsolete
  • Other Names: 490-9505-3, 490-9505-1, and DE1B3KX471KN4AN01F
