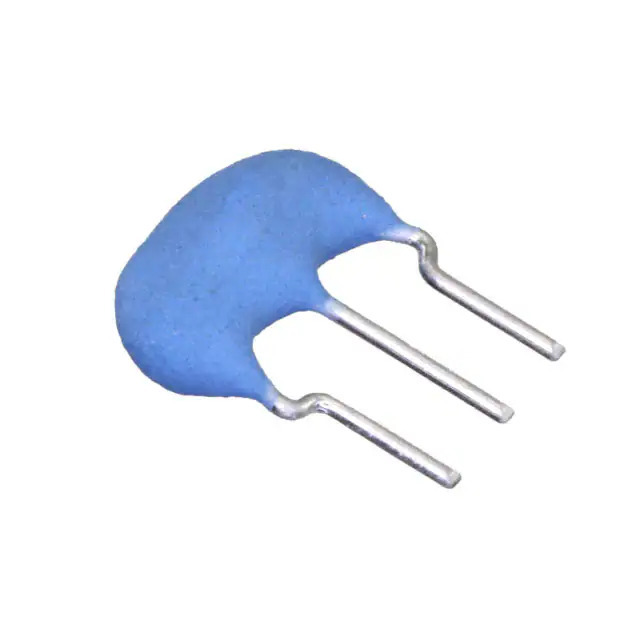

CSTLS8M00G53Z-A0 Murata Electronics North America
Same model may have multiple batches, images only for reference.

CSTLS8M00G53Z-A0

Part No CSTLS8M00G53Z-A0
Manufacturer Murata Electronics North America
Catalog Resonators
Description CERAMIC RES 8.0000MHZ 15PF T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Resonators
Mfr Murata Electronics
Series CERALOCK® CSTLS
Product Status Active
Type Ceramic
Frequency 8 MHz
Frequency Stability ±0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 15 pF
Impedance 25 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial - 3 Lead, 2.50mm Pitch
Size / Dimension 0.315" L x 0.118" W (8.00mm x 3.00mm)
Height 0.236" (6.00mm)
Base Product Number CSTLS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1366304-CSTLS8M00G53Z-A0
Ultra Librarian 3D Model Ultra Librarian CSTLS8M00G53Z-A0 CAD Model

Description

The 1366304-CSTLS8M00G53Z-A0 is a resonator from Murata Electronics.

  • Series: CERALOCK® CSTLS
  • Frequency: 8MHz
  • Built-in Capacitor: Yes
  • Frequency Stability: ±0.2%
  • Mounting Type: Through Hole
  • Package / Case: Radial, 3 Leads
  • Pitch: 2.50mm
  • Operating Temperature: -40°C to 125°C
  • Impedance: 25 Ohms
  • Capacitance: 15pF
  • Size / Dimension: 0.315" L x 0.118" W (8.00mm x 3.00mm)
  • Height - Seated (Max): 0.236" (6.00mm)
  • Product Status: Active
