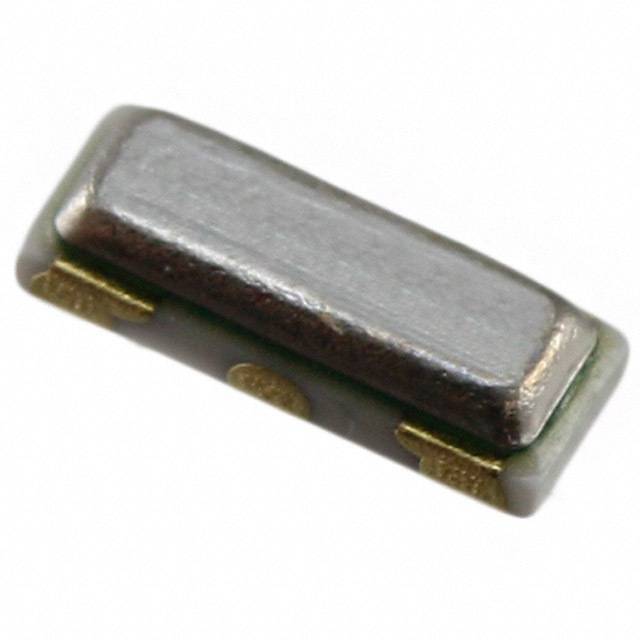

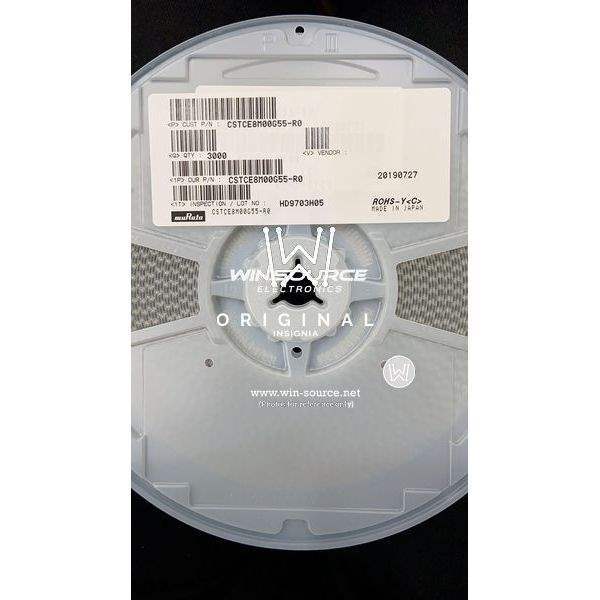

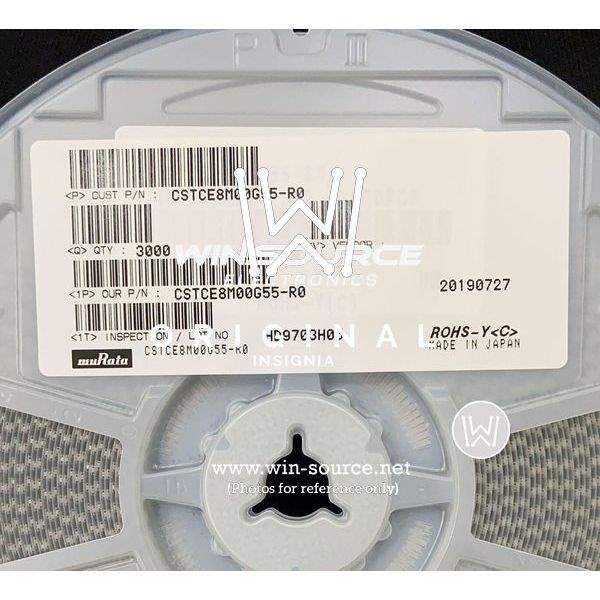

CSTCE8M00G55-R0 Murata Electronics North America CSTCE8M00G55-R0 Real Image CSTCE8M00G55-R0 label picture CSTCE8M00G55-R0 label picture 2
Same model may have multiple batches, images only for reference.
CSTCE8M00G55-R0 Murata Electronics North America CSTCE8M00G55-R0 Real Image CSTCE8M00G55-R0 label picture CSTCE8M00G55-R0 label picture 2
CSTCE8M00G55-R0 Murata Electronics North America CSTCE8M00G55-R0 Real Image CSTCE8M00G55-R0 label picture CSTCE8M00G55-R0 label picture 2
Same model may have multiple batches, images only for reference.

CSTCE8M00G55-R0

Part No CSTCE8M00G55-R0
Manufacturer Murata Electronics North America
Catalog Resonators
Description Ceramic Resonator 8MHz ±0.5% (Tol) ±0.2% (Stability) 33pF 40Ohm 3-Pin CSMD T/R / CER RES 8.0000MHZ 33PF SMD
Datasheet
CSTCE8M00G55-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Ceramic
Frequency 8MHz
Frequency Stability ±0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 33pF
Temperature Range - Operating -20°C to 80°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.051" W (3.20mm x 1.30mm)
Height 0.031" (0.79mm)
Win Source Part Number 013399-CSTCE8M00G55-R0
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CSTCE8M00G55-R0 CAD Model

Description

Description

The CSTCE8M00G55-R0 ceramic resonator is crafted to ensure excellent frequency precision and stability across extensive applications. Its design supports efficient operation in compact and advanced electronic circuits.

Features and Benefits

  • High-frequency precision
  • Compact footprint
  • Ideal for low-power applications
  • Stable performance under varied conditions

Applications

  • Consumer electronics
  • Automotive electronics systems
  • Networking hardware
  • RF transceivers

Additional Details

Engineered for precision, the CSTCE8M00G55-R0 offers reliable frequency control solutions in continuously evolving technological environments, supporting modern electronics adaptability needs.
