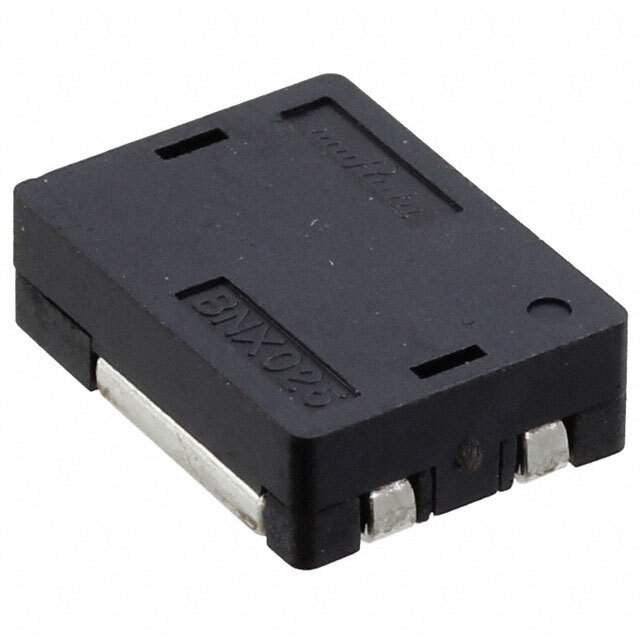

BNX022-01L Murata Electronics North America BNX022-01L Real Image BNX022-01L label picture BNX022-01L Real Image1 BNX022-01L Real Image2
Same model may have multiple batches, images only for reference.
BNX022-01L Murata Electronics North America BNX022-01L Real Image BNX022-01L label picture BNX022-01L Real Image1 BNX022-01L Real Image2
BNX022-01L Murata Electronics North America BNX022-01L Real Image BNX022-01L label picture BNX022-01L Real Image1 BNX022-01L Real Image2
Same model may have multiple batches, images only for reference.

BNX022-01L

Part No BNX022-01L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 1UF SMD
Datasheet
BNX022-01L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 5th
Technology LC
Number of Channels 2
Attenuation Value 35dB @ 1MHz to 1GHz
Resistance - Channel (Ohms) 0.00043
Current 10A
Values C = 1μF
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications Data Lines for Mobile Devices
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.476" L x 0.358" W (12.10mm x 9.10mm)
Height 0.130" (3.30mm)
Win Source Part Number 011828-BNX022-01L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name BNX022
Introduction Date March 01, 2006
ECCN EAR99
Country of Origin Japan
Halogen Free Unknown
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BNX022-01L CAD Model

Description

Overview of BNX022-01L

The BNX022-01L component offers a blend of performance and adaptability, making it a valuable addition to various technical implementations. This model is particularly appreciated for its efficiency and durability.

Features & Benefits

  • Robust Construction: Designed to deliver uninterrupted service even in demanding environments.
  • Cost-effective Solution: Provides high performance at an economical price point.
  • Seamless Integration: Easily integrates into different technological frameworks.

Applications

  • Portable Devices
  • Health Monitoring Systems
  • Building Management Solutions
  • Network Infrastructure

The BNX022-01L is tailored for those who require reliability combined with cost-effectiveness in their technology solutions.
