Same model may have multiple batches, images only for reference.

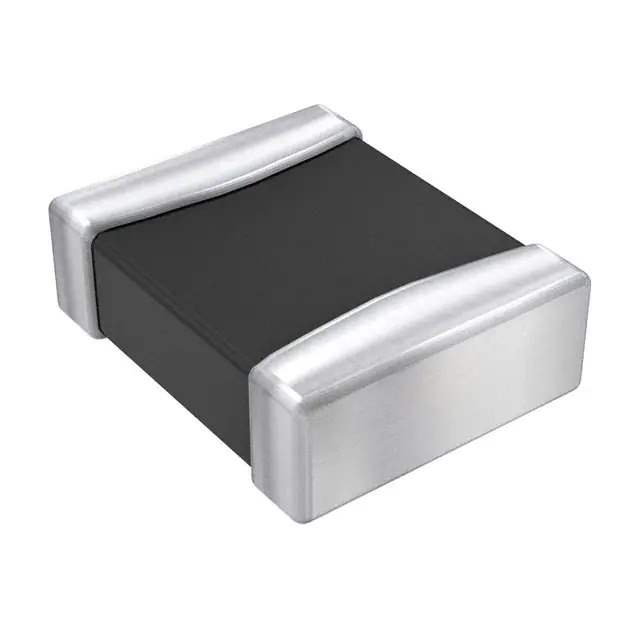

1276AS-H-R47M=P2 Real Image
Same model may have multiple batches, images only for reference.

1276AS-H-R47M=P2

Part No 1276AS-H-R47M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 470NH 3.3A 38 MOHM SMD
Datasheet
1276AS-H-R47M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics North America
Series DFE322510C
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 3.8A
Shielding Shielded
DC Resistance (DCR) 38mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number 1276AS
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 853902-1276AS-H-R47M=P2
Ultra Librarian 3D Model Ultra Librarian 1276AS-H-R47M=P2 CAD Model

Description

The 853902-1276AS-H-R47M=P2 is a fixed inductor from Murata Electronics North America.

  • Series: DFE322510C
  • Core Type: Drum
  • Winding: Wirewound
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Inductance: 470nH
  • Maximum Seated Height: 0.039" (1.00mm)
  • Mounting Type: Surface Mount
  • Package / Case: 1210 (3225 Metric)
  • DC Resistance (DCR): 38mOhm
  • Current Rating: 3.3A
  • Operating Temperature: -40°C to 85°C
  • Shielding: Shielded
  • Core Material: Iron Powder
  • Standard Package: 3,000 pcs
