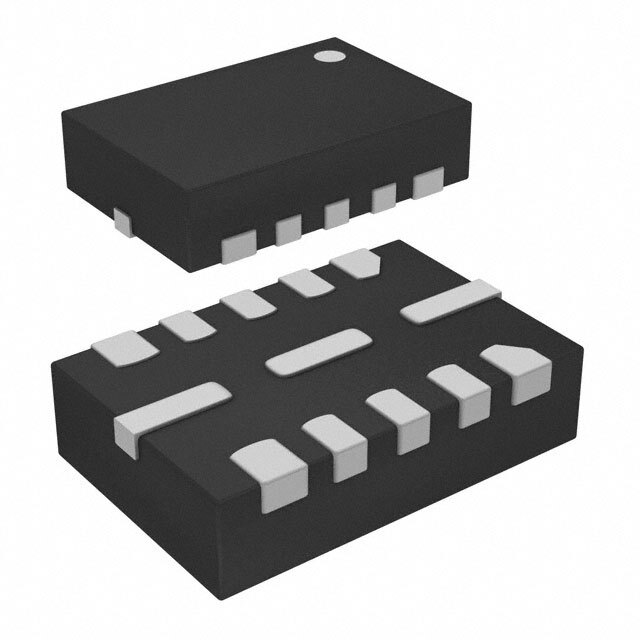

MP5017AGD-Z Monolithic Power Systems Inc.
Same model may have multiple batches, images only for reference.

MP5017AGD-Z

Part No MP5017AGD-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description 3V TO 5.5V, 1A TO 5A CURRENT LIM / Power Switch/Driver 1:1 N-Channel 5A 12-QFN (2x3)
Datasheet
MP5017AGD-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Monolithic Power Systems Inc.
Series -
Package Tape & Reel
Product Status Active
Switch Type USB Switch
Number of Outputs 1
Output Configuration High/Low Side
Output Type N-Channel
Interface On/Off
Voltage - Load 3V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 5A
Rds On (Typ) 45mOhm
Input Type Non-Inverting
Features Load Discharge, Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 12-QFN (2x3)
Package / Case 12-VFQFN Exposed Pad
Base Product Number MP5017
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1352720-MP5017AGD-Z
Ultra Librarian 3D Model Ultra Librarian MP5017AGD-Z CAD Model

Description

The MP5017AGD-Z is a power distribution switch and load driver integrated circuit (IC) manufactured by Monolithic Power Systems Inc.

  • Application: Power Management
  • Operating Temperature: -40°C to 125°C
  • Current Output: Up to 5A
  • Output Configuration: High/Low Side
  • Features: Load Discharge, Status Flag
  • Package: 12-VFQFN Exposed Pad
  • Mounting Type: Surface Mount
  • Voltage Load: 3V to 5.5V
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage, and Undervoltage Lockout
