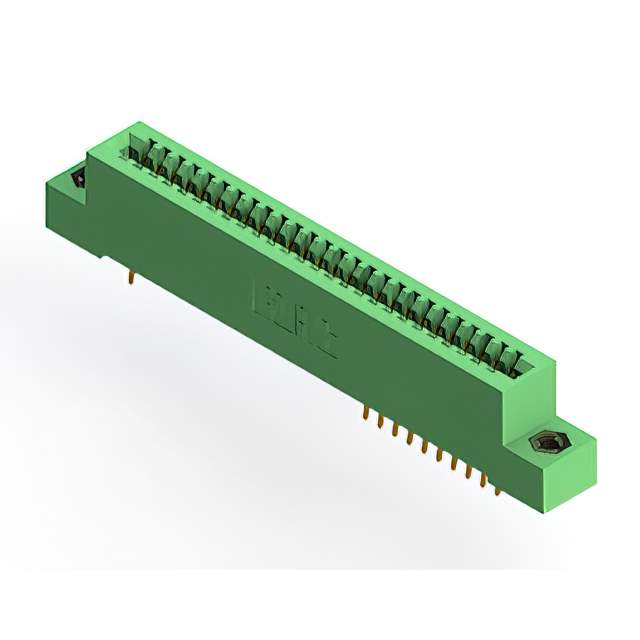

342-052-556-208 Real Image
Same model may have multiple batches, images only for reference.

342-052-556-208

Part No 342-052-556-208
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 342 SERIES (.100" (2.54MM) CONTA / 52 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
Datasheet
342-052-556-208 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 342
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 26
Number of Positions 52
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Features Card Extender
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Flush Mount, Top Opening, Threaded Insert, 4-40
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 342-052
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-342-052-556-208
Standard Package 25
Win Source Part Number 1039583-342-052-556-208
Ultra Librarian 3D Model Ultra Librarian 342-052-556-208 CAD Model

Description

The 1039583-342-052-556-208 is a 52 position card edge connector manufactured by EDAC Inc. It is a female connector with a cantilever contact type and a gold contact finish.

  • Number of Positions: 52
  • Connector Gender: Female
  • Contact Type: Cantilever
  • Contact Finish: Gold
  • Pitch: 0.100 inches
  • Mounting: Board Edge/Straddle Mount
  • Series: 342
  • Card Thickness: 0.054 to 0.070 inches
  • Features: Flush Mount, Top Opening, Threaded Insert, 4-40 Flange
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
  • Manufacturer: EDAC Inc.
