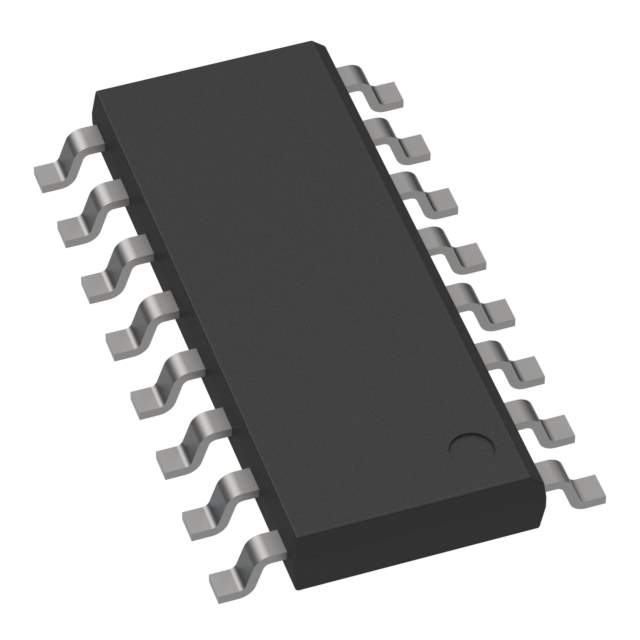

MP3394ES-LF Real Image
Same model may have multiple batches, images only for reference.

MP3394ES-LF

Part No MP3394ES-LF
Manufacturer Monolithic Power Systems Inc.
Catalog Board Mount LED Drivers
Description IC LED DRIVER
Datasheet
MP3394ES-LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Monolithic Power Systems Inc.
Packaging Tube
Type DC DC Controller
Topology Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 4
Voltage Supply MIN 5V
Voltage Supply MAX 28V
Output Current per Channel 200mA
Frequency 540kHz
Dimming PWM
Applications Backlight
Operating Temperature Range -20°C ~ 125°C (TJ)
Mounting SMD
Package 16-SOIC (0.154", 3.90mm Width)
Manufacturer Package 16-SOIC
Win Source Part Number 789159-MP3394ES-LF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian MP3394ES-LF CAD Model

Description

The Monolithic Power Systems Inc. MP3394ES-LF is a DC DC controller component.

  • Packaging: Tube
  • Type: Integrated Circuit (IC)
  • Operating Temperature: -20°C to 125°C (TJ)
  • Package: 16-SOIC (0.154", 3.90mm Width)
  • Applications: Backlight
  • Mounting: SMD
  • Frequency: 540kHz
  • Topology: Step-Up (Boost)
  • Outputs: 4
  • Dimming: PWM
  • Supply and Demand: Balanced
  • Quantity per Package: 50
