Same model may have multiple batches, images only for reference.

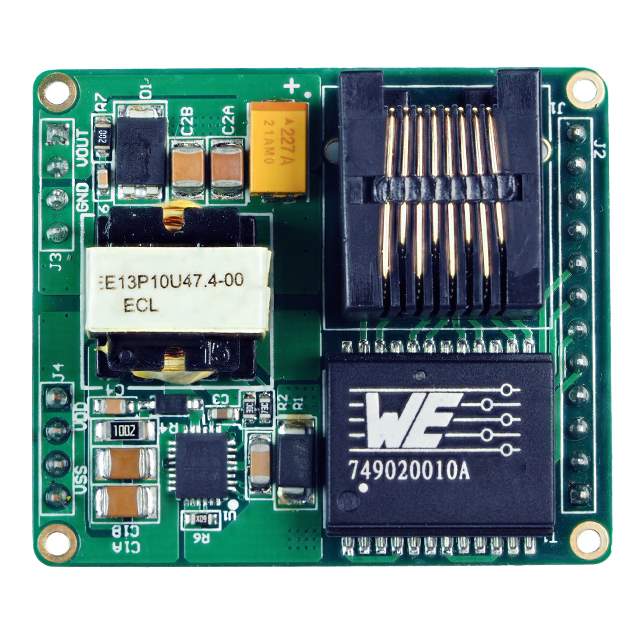

MEZS84801A Real Image
Same model may have multiple batches, images only for reference.

MEZS84801A

Part No MEZS84801A
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 12W / Isolated PoE Module DC DC Converter 1 Output 12V 1A 37V - 57V Input
Datasheet
MEZS84801A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Monolithic Power Systems Inc.
Package Tray
Type Isolated PoE Module
Number of Outputs 1
Voltage - Input (Min) 37V
Voltage - Input (Max) 57V
Voltage - Output 1 12V
Current - Output (Max) 1A
Power (Watts) 12 W
Applications ITE (Commercial)
Features OCP, OTP, OVP
Temperature Range - Operating 0°C ~ 85°C
Efficiency 84.5%
Mounting SMD (SMT)
Package / Case 20-SMD Module
Dimension 1.77" L x 1.54" W x 0.68" H (45.0mm x 39.0mm x 17.3mm)
Base Product Number MEZS84801
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1589-1498
Standard Package 6
Win Source Part Number 1078541-MEZS84801A
Ultra Librarian 3D Model Ultra Librarian MEZS84801A CAD Model

Description

The MEZS84801A is an isolated PoE module electronic component manufactured by Monolithic Power Systems Inc.

  • Power Output: 12W
  • Maximum Output Current: 1A
  • Voltage Input Range: 37V to 57V
  • Voltage Output: 12V
  • Application: ITE (Commercial)
  • Standard Package: 6
  • Mounting Type: SMD (SMT)
  • Efficiency: 84.5%
  • Temperature Range: 0°C to 85°C
