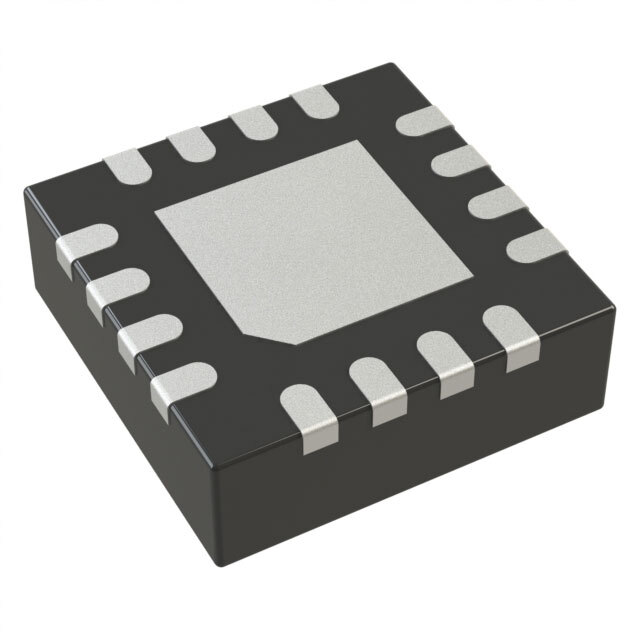

Same model may have multiple batches, images only for reference.
MA702GQ-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MA702GQ-Z

Part No MA702GQ-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT);
Product Status Active
For Measuring Angle
Technology Hall Effect
Output PWM
Output Signal Programmable
Actuator Type External Magnet, Not Included
Voltage - Supply 3.3V
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Operating Temperature -40°C ~ 125°C
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Ultra Librarian 3D Model Ultra Librarian MA702GQ-Z CAD Model

Description

The Monolithic Power Systems Inc. MA702GQ-Z is a programmable hall effect sensor that can measure angle.

  • Output Signal: PWM
  • Actuator Type: External Magnet (not included)
  • Resistance Tolerance: -
  • Linearity: -
  • Rotation Angle (Electrical and Mechanical): -
  • Linear Range: -
  • Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT) Tab
  • Supplier Device Package: 16-QFN (3x3)
  • Package: 16-VFQFN exposed pad
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 5000
  • MSL Level: 1 (Unlimited)
  • Supply Voltage: 3.3V
