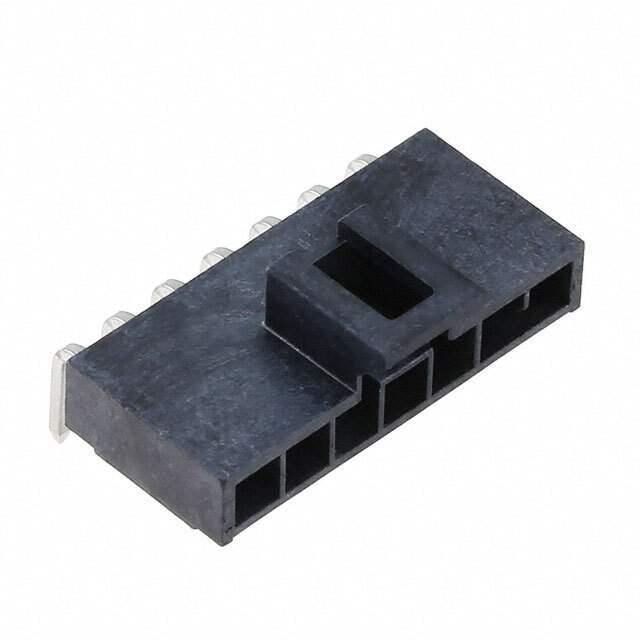

1053131307 Molex
Same model may have multiple batches, images only for reference.

1053131307

Part No 1053131307
Manufacturer MolexKits
Catalog Rectangular Connectors
Description CONN HEADER R/A 7POS 2.5MM
Datasheet
1053131307 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects >Rectangular Connectors> Headers, Male Pins
Mfr Molex
Packaging  Tray
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Ultra Librarian 3D Model Ultra Librarian 1053131307 CAD Model

Description

Nano-Fit Power Connectors deliver up to 8.0A with a 2.50mm pitch, while also offering keying options to ensure proper mating and terminal position assurance (TPA) retainers to prevent terminal backout
