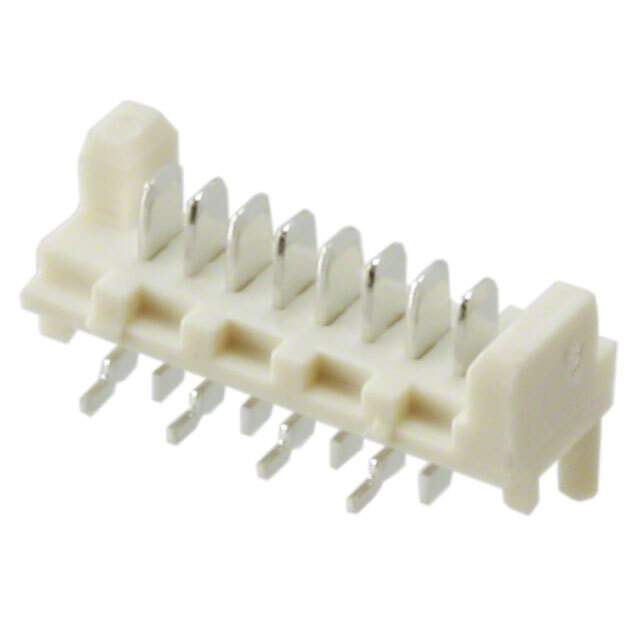

0908140808 Real Image
Same model may have multiple batches, images only for reference.

0908140808

Part No 0908140808
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 8POS 1.27MM / Connector Header Surface Mount 8 position 0.050" (1.27mm)
Datasheet
0908140808 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tube
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.050" (1.27mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.085" (2.15mm)
Insulation Height 0.161" (4.10mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1.2A
Voltage Rating 250V
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 090814
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 90814-0808-E,WM19276,090814-0808-E,0908140808-E,908140808,90814-0808,908140808-E,090814-0808
Standard Package 38
Win Source Part Number 1333066-0908140808
Ultra Librarian 3D Model Ultra Librarian 0908140808 CAD Model

Description

The Molex 1333066-0908140808 is an 8-position header connector designed for board-to-cable or wire applications.

  • Rows: 1
  • Contact Type: Male Blade
  • Fastening Type: Push-Pull
  • Voltage Rating: 250V
  • Material Flammability Rating: UL94 V-0
  • Contact Material: Brass
  • Contact Finish: Tin
  • Applications: Automotive, General-Purpose, Industrial, and Medical
  • Mounting Type: Surface Mount
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Pitch: 0.050" (1.27mm)
  • Current Rating: 1.2A
  • Shrouded: 2 Walls
  • Contact Length: -
