Same model may have multiple batches, images only for reference.

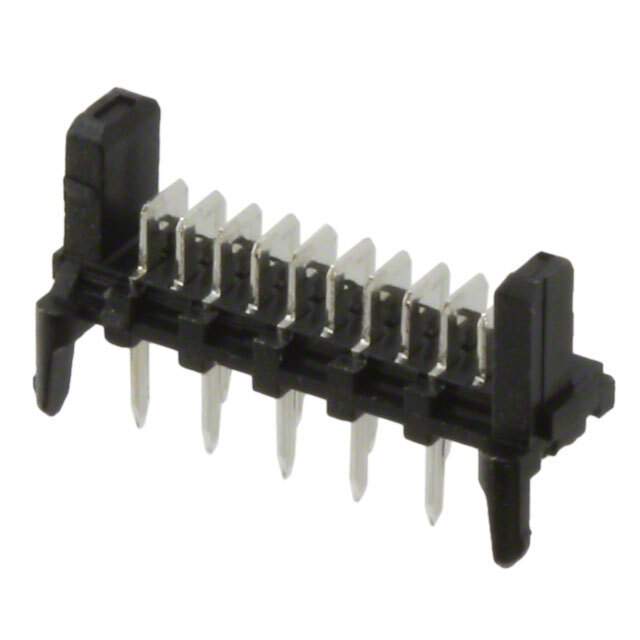

90325-9010 Real Image
Same model may have multiple batches, images only for reference.

90325-9010

Part No 90325-9010
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Picoflex PF-50 Header, Vertical, Low Profile, 10 Circuits, Tin (Sn) Plating, Tube Packaging
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Blade Pin
Contact Material Brass
Contact Plating Tin
Contact Resistance 15 mΩ
Country of Origin MY
Current Rating 1.2 A
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Black
Housing Material PBT
Lead Free Lead Free
Lead Pitch 1.27 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 10
Number of Contacts 10
Number of Positions 10
Number of Rows 1
Orientation Vertical
Pitch 1.27 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Win Source Part Number 1216117-90325-9010
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90325-9010 CAD Model

Description

The 1216117-90325-9010 from Molex, LLC is a black blade pin connector.

  • Color: Black
  • Pitch: 1.27 mm
  • Number of Positions: 10
  • Number of Rows: Single
  • Termination: Solder
  • Contact Material: Brass
  • Voltage Rating: 250 V
  • Current Rating: 1.2 A
  • Contact Plating: Tin
  • Housing Material: PBT
  • Housing Color: Black
  • Contact Resistance: 15 mΩ
  • Lead-Free: Yes
  • Mounting Type: Through-Hole
  • RoHS Compliant: Yes
  • Application: Circular Connector Housings
