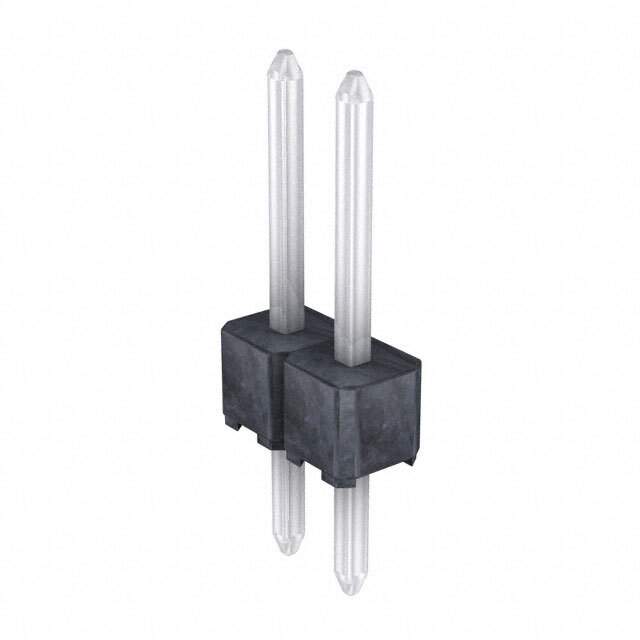

Same model may have multiple batches, images only for reference.

90120-0122

Name: 90120-0122
Brand: Molex, LLC
SKU: 1015852
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	90120-0122
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	2.54mm Pitch C-Grid III Header, Single Row, Vertical, 2 Circuits, Tin (Sn) Plating
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	US
Current Rating	3 A
Flammability Rating	UL94 V-2
Gender	Male
Glow Wire Compliant	Non-compliant
Height	2.5 mm
Housing Color	Black
Housing Material	Polyester
Insulation Resistance	5 GΩ
Lead Free	Yes
Lead Pitch	2.54 mm
Length	5.08 mm
Maximum Operating Temperature	125 °C
Min Operating Temperature	-55 °C
Mount	Through Hole
Number of Circuits	2
Number of Contacts	2
Number of Pins	2
Number of Positions	2
Number of Rows	1
Orientation	Vertical
Pitch	2.54 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	Solder
Voltage Rating	350 V
Voltage Rating (DC)	350 V
Width	2.54 mm
Win Source Part Number	1015852-90120-0122
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 90120-0122 CAD Model

Alternative Products

Description

The Molex, LLC 1015852-90120-0122 is a black, 2-position header connector with a pitch of 2.54 mm.

Color: Black
Positions: 2
Pitch: 2.54 mm
Contact Type: Male
Mounting: Soldered to the board
Voltage Rating: 350 V
Current Rating: 3 A
Length: 5.08 mm
Width: 2.54 mm
Height: 2.5 mm
Category: Circular connectors - housings
RoHS: Compliant
Applications: Automotive, industrial, and medical devices
Lead-Free: Yes
Flammability Rating: UL94 V-2
