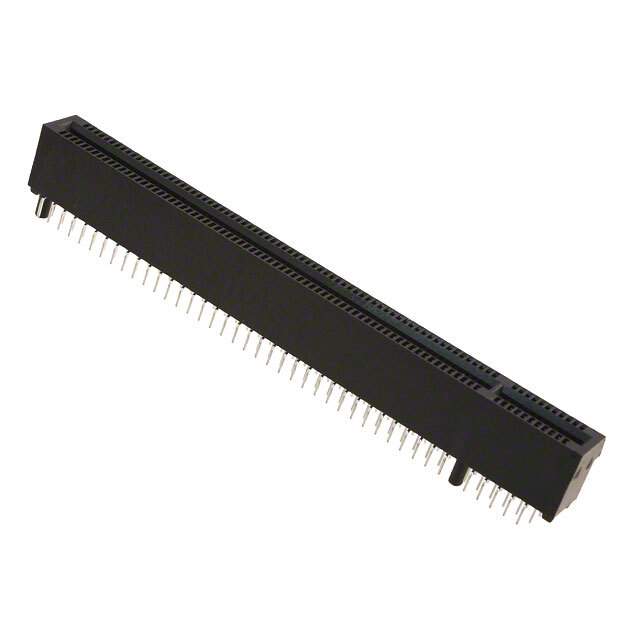

87715-9306 Real Image
Same model may have multiple batches, images only for reference.

87715-9306

Part No 87715-9306
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description Conn Backplane RCP 128Signal/64Ground POS 1.9mm Press Fit RA Thru-Hole Box/Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Card Thickness 1.57 mm
Color Black
Contact Material Bronze
Contact Plating Gold
Contact Resistance 30 mΩ
Country of Origin HK
Current Rating 1.1 A
Data Rate 8 Gbps
Gender Receptacle
Housing Color Black
Housing Material Nylon
Lead Free Yes
Lead Pitch 1 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 164
Number of Contacts 164
Number of Positions 164
Number of Rows 2
Orientation Vertical
Pitch 2 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Row Spacing 2 mm
Termination Solder
Voltage Rating (AC) 50 V
Win Source Part Number 1041285-87715-9306
Categories Card Edge Connectors - Edgeboard Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 87715-9306 CAD Model

Description

This Molex 87715-9306 card edge connector is a high-performance connector designed for use in a variety of applications.

  • Positions: 164
  • RoHS Compliant: yes
  • Applications: computer systems, networking equipment, and other high-speed applications
