Same model may have multiple batches, images only for reference.

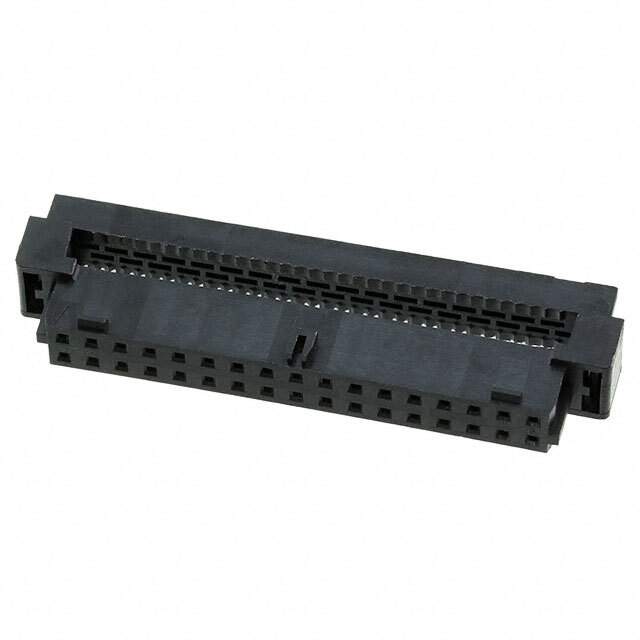

87568-3493 Real Image
Same model may have multiple batches, images only for reference.

87568-3493

Part No 87568-3493
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description Conn IDC Connector RCP 34 POS 2mm IDT RA Side Entry Cable Mount Milli-Grid™ Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Female
Contact Material Copper
Contact Plating Gold
Contact Resistance 30 mΩ
Country of Origin SG
Current Rating 1 A
Depth 5.87 mm
Gender Female
Glow Wire Compliant Non-compliant
Housing Color Black
Housing Material Polyester
Lead Free Contains Lead
Lead Pitch 2 mm
Length 40.65 mm
Max Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Cable
Number of Circuits 34
Number of Contacts 34
Number of Positions 34
Number of Rows 2
Orientation Right Angle
Pitch 2 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination IDT
Voltage Rating 125 V
Wire/Cable Gauge 28 AWG
Win Source Part Number 1197523-87568-3493
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 87568-3493 CAD Model

Description

The Molex 1197523-87568-3493 is a custom part connector that has 34 positions with a pitch of 2mm and is designed with 2 rows.

  • Positions: 34
  • Pitch: 2mm
  • Rows: 2
  • Termination: IDT
  • Contact Material: Copper
  • Contact Plating: Gold
  • Voltage Rating: 125V
  • Current Rating: 1A
  • Length: 40.65mm
  • Housing Material: Polyester
  • RoHS: Compliant
  • Contact Resistance: 30 mΩ
  • Mounting: Cable mounting
  • Orientation: Right Angle
