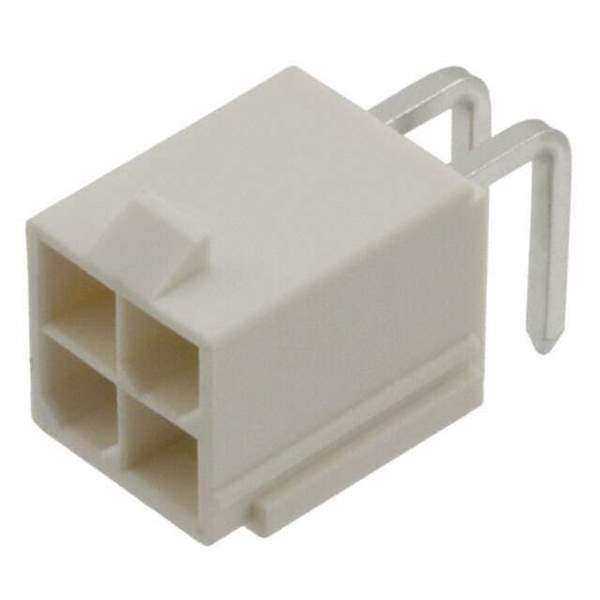

The Molex 87427-0402 is a Micro-Latch Connector Housing, designed for secure and compact wire-to-board connections. Part of the Micro-Latch series, it offers a positive latching mechanism for reliable performance in demanding applications. This housing ensures proper mating and prevents accidental disconnections, making it a suitable choice for various electronic devices.

Applications:

• Consumer Electronics (e.g., digital cameras, portable media players)
• Industrial Automation Equipment
• Medical Devices (e.g., patient monitoring systems)
• Automotive Electronics (e.g., infotainment systems)
• Telecommunications Equipment
• Robotics
• Data Acquisition Systems

Features:

• 2.00mm Pitch: Enables high-density connections in compact spaces.
• Single Row, 4 Circuits: Provides a balance of compactness and connection capacity.
• Positive Latch: Ensures a secure and reliable connection, preventing accidental unmating.
• Polarization: Prevents incorrect mating, ensuring proper orientation.
• Durable Material: Constructed from robust materials for long-lasting performance.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits:

• Reliable Connection: The positive latch provides a secure and stable connection, even in vibrating environments.
• Space Saving: The compact design allows for use in applications with limited space.
• Easy to Use: Designed for simple and efficient mating and unmating.
• Prevents Mismating: Polarization features ensure correct connections.
• Long-Term Performance: Durable materials provide reliable performance over extended periods.

Additional Details:

The 87427-0402 housing is designed to work with specific crimp terminals from the Molex Micro-Latch series. These terminals provide a secure electrical connection with the wires, ensuring reliable signal transmission. The housing material is typically a high-temperature thermoplastic, enabling it to withstand various environmental conditions.

This connector is designed to facilitate efficient assembly processes and contribute to overall cost-effectiveness. Its secure latching mechanism and compact size make it a popular choice in applications where reliability and space optimization are critical factors. It helps maintain consistent signal integrity even under adverse conditions.

The Molex 87427-0402 Micro-Latch Connector Housing provides a dependable and space-efficient solution for wire-to-board connections, making it suitable for diverse applications across various industries.
