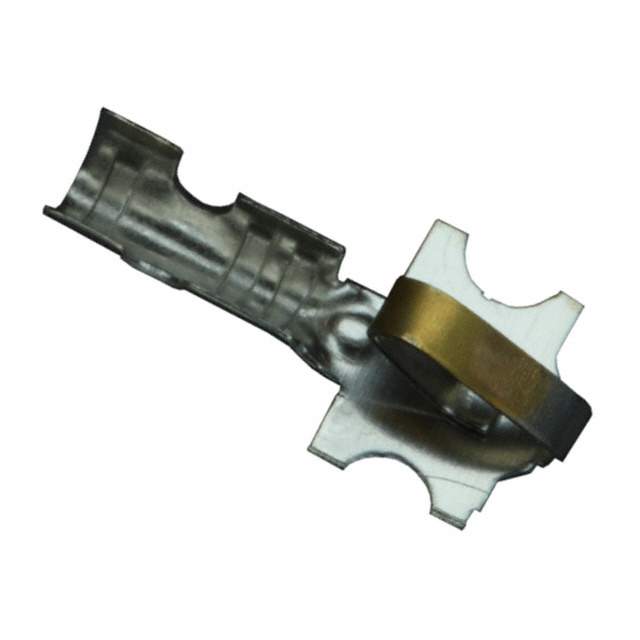

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr Molex
Series KK254, 2759
Package Tape & Reel (TR),Cut Tape (CT)
Pin or Socket Non-Gendered
Contact Termination Crimp
Wire Gauge 22-30 AWG
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 000855
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1315131-8550101
Ultra Librarian 3D Model Ultra Librarian 8550101 CAD Model

Description

This electronic component is a tape & reel (TR), cut tape (CT) packaged connector manufactured by Molex.

  • Series: KK254, 2759
  • Gender: Non-Gendered
  • Contact Type: Pin or Socket
  • Termination: Crimp
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Wire Gauge: 22-30 AWG
  • ECCN: EAR99.90.4000
