Same model may have multiple batches, images only for reference.

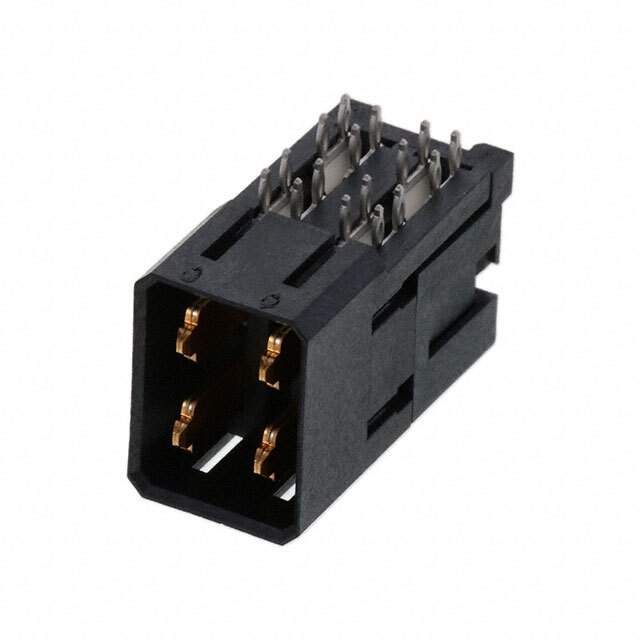

78211-1011 Real Image
Same model may have multiple batches, images only for reference.

78211-1011

Part No 78211-1011
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description Conn Backplane HDR 4Power POS Solder RA Thru-Hole Impact™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Country of Origin SG
Current Rating 15 A
ELV Compliant
Flammability Rating UL94 V-0
Halogen Free Low Halogen
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 48 V
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 4
Number of Pairs 3
Number of Rows 2
Orientation Right Angle
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Shielding Unshielded
Termination Solder
Voltage Rating 250 V
Win Source Part Number 979022-78211-1011
Categories Backplane Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 78211-1011 CAD Model

Description

The Molex, LLC 979022-78211-1011 is a high-quality backplane connector that is designed to provide reliable and efficient connectivity.

  • Manufacturer: Molex, LLC
  • Supply and Demand Status: Short
  • Application: Various
  • Connector Type: Right Angle
  • Circuits: 4
  • Voltage Rating: 250V
