Same model may have multiple batches, images only for reference.

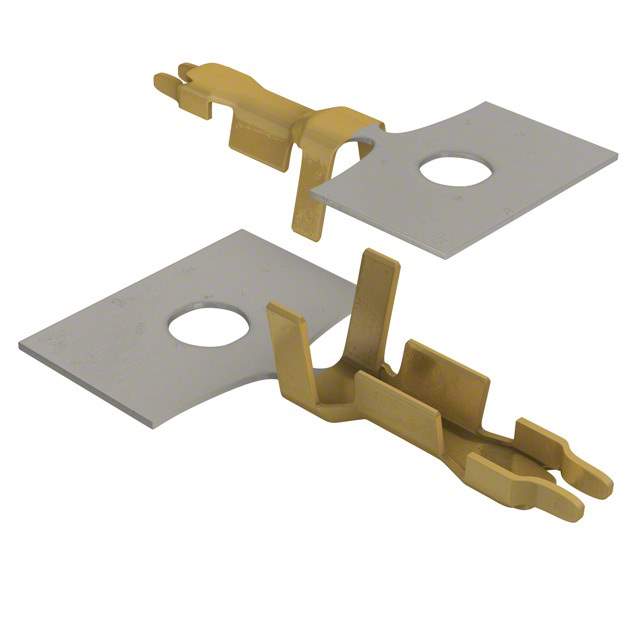

78172-0410 Real Image
Same model may have multiple batches, images only for reference.

78172-0410

Part No 78172-0410
Manufacturer Molex, LLC
Catalog Terminals
Description Pico-EZmate Female Crimp Terminal, Gold (Au) over Nickel Plating 0.10µm, 28-30 AWG, Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package 0410
Connector Type Connector, PCB, Receptacle, Signal
Contact Gender Female
Contact Material Bronze, Gold
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin US
Current Rating 1.5 A
Depth 1.25 mm
Gender Female
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 1.1 mm
Length 3.1 mm
Max Current Rating 1.5 A
Mount Cable
Number of Contacts 1
Number of Rows 1
Orientation Straight
Plating Gold
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Shielding Unshielded
Termination Crimp
Voltage Rating 50 V
Weight 58.003124 mg
Wire/Cable Gauge 30 AWG
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 30 AWG
Win Source Part Number 1107304-78172-0410
Categories Terminals
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 78172-0410 CAD Model

Description

The 1107304-78172-0410 is a PCB receptacle signal connector with a crimp termination by Molex, LLC.

  • Rows: 1
  • Contact Material: Bronze and Gold
  • Contact Resistance: 20 mΩ
  • Voltage Rating: 50 V
  • Current Rating: 1.5 A
  • Gender: Female
  • Contact Gender: Female
  • Shielded: Unshielded
  • Orientation: Straight
  • Contact Plating: Gold
  • Height: 1.1 mm
  • Weight: 58.003124 mg
  • RoHS Compliance: Yes
  • Low Halogen: Yes
  • Application: Signal Connector
  • Termination: Crimp
  • Mounting Type: PCB Receptacle
