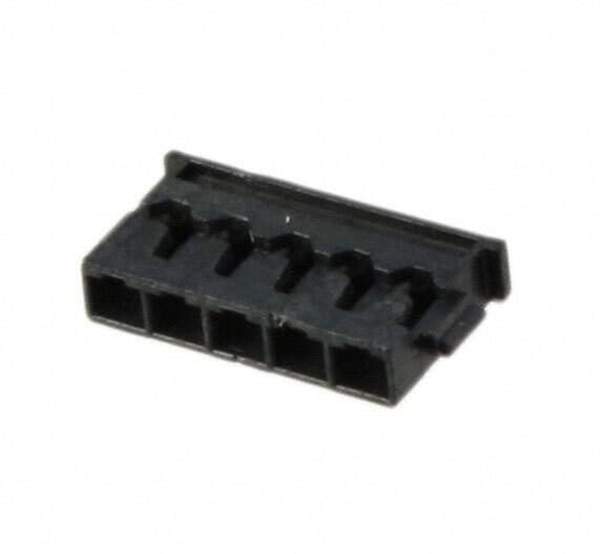

78172-0005 Real Image
Same model may have multiple batches, images only for reference.

78172-0005

Part No 78172-0005
Manufacturer Molex, LLC
Catalog Circular Connectors
Description Conn Rectangular RCP 37 POS Crimp ST Cable Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Female
Contact Plating Gold
Country of Origin MY
Current Rating 1.5 A
Depth 3.5 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Polymer
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 3
Number of Pins 5
Number of Positions 5
Number of Rows 1
Orientation Straight
Pitch 1.2 mm
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Crimp
Voltage Rating (AC) 50 V
Width 1.3 mm
Win Source Part Number 1003023-78172-0005
Categories Circular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 78172-0005 CAD Model

Description

This Molex connector has a part number of 1003023-78172-0005 and is designed for cable mounting.

  • Manufacturer: Molex
  • Mounting: Cable
  • Positions: 5
  • Pitch: 1.2mm
  • Color: Gold
  • Current Rating: 1.5A
  • Voltage Rating: 50V (AC)
  • Contact Material: Polymer
  • RoHS Compliant: Yes
  • Max Operating Temperature: 105°C
  • Min Operating Temperature: -40°C
