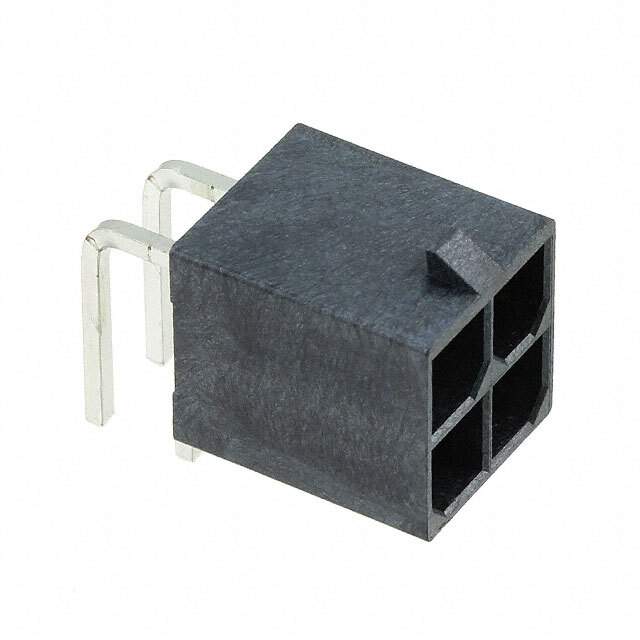

768250004

Name: 768250004
Brand: Molex, LLC
SKU: 766159
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	768250004
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	DUAL ROW RA HEADER TIN 4CKT
Datasheet	768250004 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Series	Mega-Fit
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.224" (5.70mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.224" (5.70mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.572" (14.53mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	60μin (1.52μm)
Contact Finish - Post	Tin
Contact Material	Copper
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Glow Wire Compliant
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	60μin (1.52μm)
Applications	Automotive, General Purpose, Industrial, Telecommunications
Win Source Part Number	766159-768250004
Popularity	Medium
Supply and Demand Status	Limited
Family Name	76825
Introduction Date	November 18, 2013
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian 768250004 CAD Model

Description

The Molex, LLC 766159-768250004 is a Mega-Fit series header connector with 4 positions.

Positions: 4
Features: Board Guide, Glow Wire Compliance
Contact Type: Male Pin
Applications: Automotive, General Purpose, Industrial, Telecommunications
Mounting: Through-hole
Style: Right-angle
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Finish: Tin
RoHS Compliant: Yes
