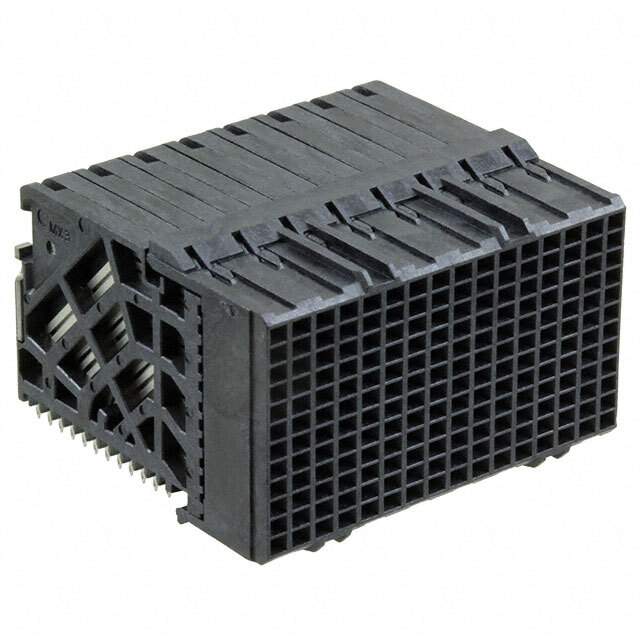

76160-1026 Real Image
Same model may have multiple batches, images only for reference.

76160-1026

Part No 76160-1026
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description Daughtercard; Recept; Impact 100 Ohm; 6 Pair; Rt Angle; 16 Col; 192 Cir; Thru Hole; LF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Gold, Nickel
Contact Plating Gold
Country of Origin US
Current Rating 750 mA
Data Rate 25 Gbps
Flammability Rating UL94 V-0
Halogen Free Low Halogen
Height 17.55 mm
Housing Material Thermoplastic
Impedance 100 Ω
Material Thermoplastic
Maximum Operating Temperature 85 °C
Min Operating Temperature -55 °C
Number of Circuits 192
Number of Columns 16
Number of Contacts 192
Number of Pairs 4
Number of Positions 192
Number of Rows 12
Orientation Right Angle
Pitch 1.9 mm
Plating Tin
RoHS Compliant
Shielding Unshielded
Termination SMD/SMT
Voltage Rating 30 V
Voltage Rating (AC) 30 V
Win Source Part Number 1002130-76160-1026
Categories Backplane Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 76160-1026 CAD Model

Description

The 76160-1026 is a backplane connector from Molex, LLC.

  • Pitch: 1.9mm
  • Positions: 192
  • Rows: 12
  • Columns: 16
  • Orientation: right-angle
  • Termination: surface mount
  • Contact Material: gold and nickel
  • Voltage: 30V
  • Current: 750mA
  • Data Rate: 25Gbps
  • Impedance: 100Ω
  • RoHS Compliant: Yes
  • Halogen Content: low
  • Temperature Range: -55°C to 85°C
  • Flammability Rating: UL94 V-0
