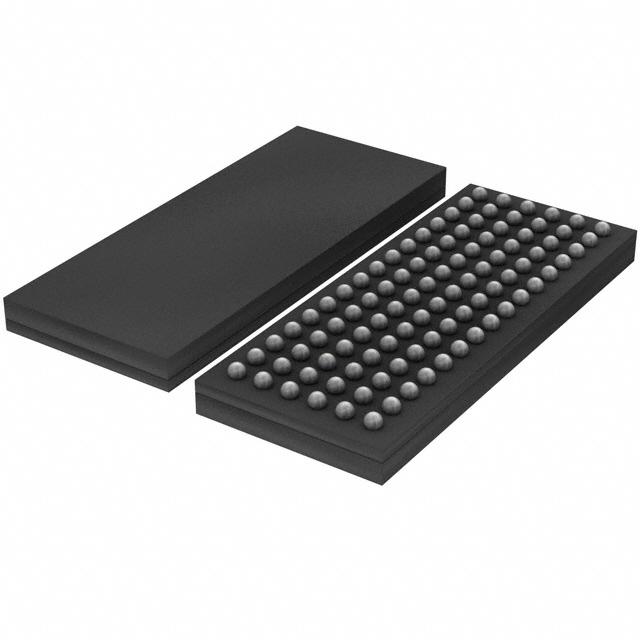

Product Overview: 74LVCH32373AEC,518

The 74LVCH32373AEC,518 is a high-performance, low-voltage CMOS product manufactured by NXP Semiconductors. This integrated circuit is designed to be a 32-bit transparent latch with 3-state outputs, making it an ideal choice for use in a wide range of applications that require temporary data storage or output buffering.

Key Features

• Voltage Range: The device operates at a nominal voltage of 3.3V, which is compatible with 3.3V and 5V input logic levels, providing a flexible interface for various logic families.
• Bus-Hold Data Inputs: The latch includes bus-hold circuitry on all data inputs, which eliminates the need for external pull-up or pull-down resistors and ensures that the inputs remain at a valid logic level when open-drained.
• Transparent Latch: The device's transparent nature means that when the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is low, the data that meets the setup time is latched at the Q outputs.
• Output Capability: The 74LVCH32373AEC,518 can drive 50 Ohm transmission lines at 3.3V, which is suitable for addressing high-speed data transmission challenges.
• 3-State Outputs: The outputs can be put in a high-impedance state, which is useful for sharing bus lines in a system and for reducing power consumption when outputs are not in use.
• Low Power Consumption: The device is designed for low power dissipation, which makes it suitable for battery-operated and power-sensitive applications.

Applications

The 74LVCH32373AEC,518 is versatile and can be used in a variety of applications, including:

• Temporary data storage
• Output buffering for digital address and data buses
• Communications systems
• Computers and computer peripherals
• Data acquisition systems

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the 74LVCH32373AEC,518 is no exception. It is produced with the highest design and manufacturing standards, ensuring reliable performance in demanding environments.

Environmental and Regulatory Compliance

The 74LVCH32373AEC,518 meets or exceeds industry standards for environmental and regulatory compliance, including RoHS and Green Product requirements, making it a responsible choice for environmentally conscious designs.

Overall, the 74LVCH32373AEC,518 from NXP Semiconductors is a robust and reliable component that offers a combination of high-speed operation, low power consumption, and versatile functionality, making it an excellent choice for designers in need of a high-quality transparent latch solution.
