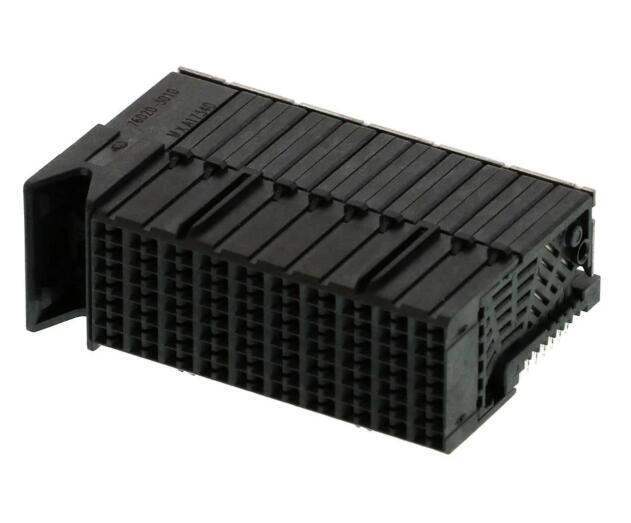

76020-3010 Molex
Same model may have multiple batches, images only for reference.

76020-3010

Part No 76020-3010
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description High Speed / Modular Connectors i-trac 7row dc sig m w dc sig mod left sn
Datasheet
76020-3010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Category Backplane Connectors
Product Receptacles
Number of Positions 140 Position
Number of Rows 7 Row
Pitch 3.7 mm
Termination Style Solder Pin
Contact Plating Gold
Series 76020
Packaging Tray
Contact Material Tin
Current Rating 1 A
Ultra Librarian 3D Model Ultra Librarian 76020-3010 CAD Model

Description

GbX I-Trac Right-Angle Receptacle Module, 1.85mm by 3.70mm Pitch, Left Guide 7 Row, 10 Columns, 140 Circuits, Lead-Free
