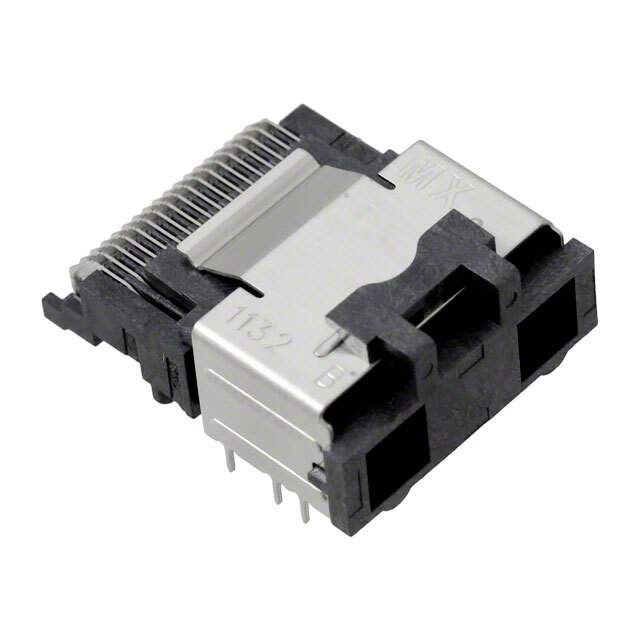

75783-0132 Real Image
Same model may have multiple batches, images only for reference.

75783-0132

Part No 75783-0132
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description Conn SATA RCP 36 POS 0.8mm Solder ST Thru-Hole 36 Terminal 1 Port Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type SATA
Contact Material Gold, Nickel
Contact Plating Gold
Contact Resistance 30 mΩ
Country of Origin US
Current Rating 500 mA
Data Rate 10 Gbps
Depth 24.07 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Height 5.35 mm
Housing Color Black
Housing Material Thermoplastic
Lead Free Yes
Lead Length 1.96 mm
Lead Pitch 800 µm
Length 17.8 mm
Material Thermoplastic
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 30 V
Max Voltage Rating (DC) 3.03 kV
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 36
Number of Contacts 36
Number of Ports 1
Number of Positions 36
Number of Rows 2
Orientation Right Angle
Packaging Cut Tape
Pitch 800 µm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination SMD/SMT
Voltage Rating 48 V
Voltage Rating (AC) 30 V
Width 22.6 mm
Win Source Part Number 1037920-75783-0132
Categories Card Edge Connectors - Edgeboard Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 75783-0132 CAD Model

Description

This Molex SATA connector is a black, right angle, 36-position connector with a pitch of 800 µm.

  • Color: Black
  • Orientation: Right Angle
  • Positions: 36
  • Pitch: 800 µm
  • Voltage Rating: 48V
  • Current Rating: 500 mA
  • Contact Material: Gold and Nickel
  • Housing Material: Thermoplastic
  • Contact Resistance: 30 mΩ
  • Height: 5.35 mm
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Application: Card Edge Connectors and Edgeboard Connectors
