Same model may have multiple batches, images only for reference.

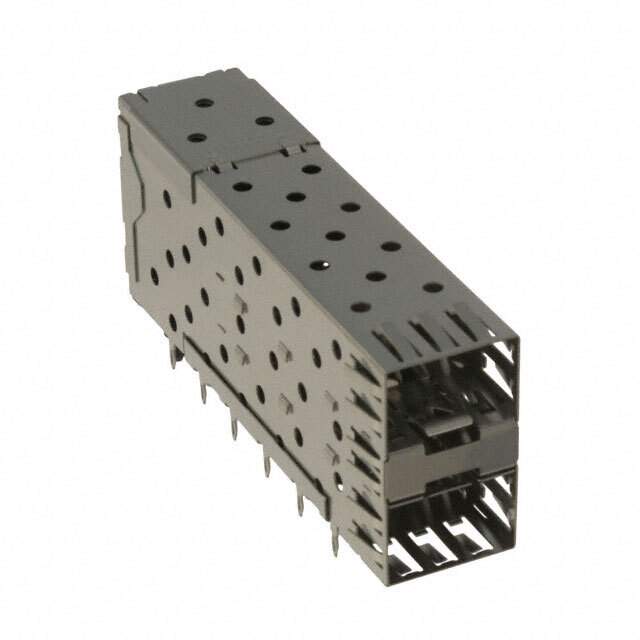

75462-5001 Real Image
Same model may have multiple batches, images only for reference.

75462-5001

Part No 75462-5001
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description Conn SFP F 40 POS 1.6mm Press Fit RA Thru-Hole 40 Terminal 2 Port Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Brass
Contact Plating Gold
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 500 mA
Depth 63.25 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Housing Color Black
Housing Material Thermoplastic
Length 15.84 mm
Material Thermoplastic
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 120 V
Max Voltage Rating (DC) 120.12 kV
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 40
Number of Contacts 40
Number of Ports 2
Number of Positions 40
Number of Positions Loaded 40
Number of Rows 2
Orientation Right Angle
Pitch 800 µm
Plating Tin
Radiation Hardening No
RoHS Compliant
Shielding Shielded
Termination Press-Fit
Voltage Rating (AC) 120 V
Win Source Part Number 1218387-75462-5001
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 75462-5001 CAD Model

Description

The Molex 1218387-75462-5001 connector is a high-quality custom part that features 40 positions with a pitch of 800 µm.

  • Positions: 40
  • Pitch: 800 µm
  • Termination Style: Press-Fit
  • Contact Material: Brass
  • Current Rating: 500 mA
  • Connector Type: Female
  • Housing Material: Thermoplastic
  • Orientation: Right Angle
  • Voltage Rating: 120V
  • RoHS Compliant: Yes
  • Mounting: Through Hole
  • Shielded: Yes
  • Color: Black
