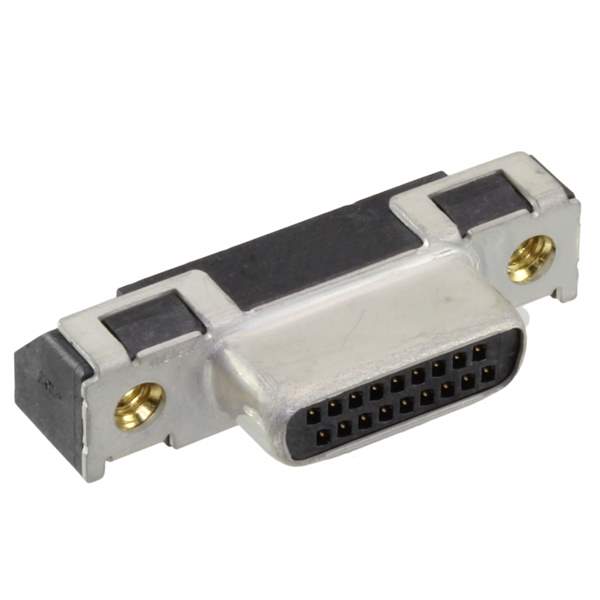

74960-3018 Real Image
Same model may have multiple batches, images only for reference.

74960-3018

Part No 74960-3018
Manufacturer Molex, LLC
Catalog D - Sub Connectors
Description Conn Rectangular RCP 51 POS 0.63mm Solder ST SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle, Signal
Contact Plating Gold
Country of Origin US
Current Rating 1.5 A
Depth 13.97 mm
Features Shielded
Gender Female
Housing Material Polymer
Length 30.48 mm
Maximum Operating Temperature 85 °C
Max Supply Voltage 40 V
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 18
Number of Contacts 18
Number of Ports 1
Number of Positions 18
Number of Rows 0
Number of Terminals 18
Orientation Right Angle, Vertical
Pitch 640 µm
Plating Tin
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating 40 V
Width 7.65 mm
Win Source Part Number 1033861-74960-3018
Categories D - Sub Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 74960-3018 CAD Model

Description

This female signal connector is manufactured by Molex, LLC.

  • Positions: 18
  • Pitch: 640 µm
  • Rows: None
  • Termination: Solder
  • Current Rating: 1.5 A
  • Voltage Rating: 40 V
  • Housing Material: Polymer
  • Circuits: 18
  • Orientation: Right-angle and vertical
  • Contact Plating: Gold
  • RoHS Compliant: Yes
  • Max Operating Temperature: 85°C
  • Min Operating Temperature: -20°C
  • Type: Surface-mount
