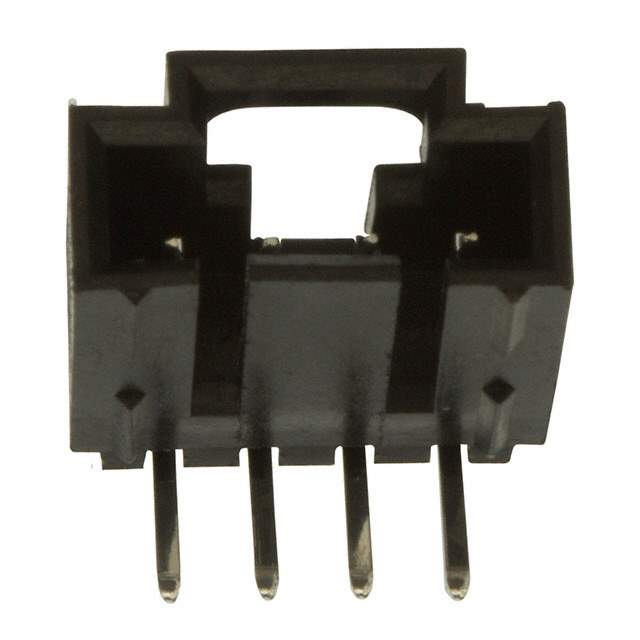

Same model may have multiple batches, images only for reference.

705530038

Name: 705530038
Brand: Molex, LLC
SKU: 421264
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	705530038
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HDR RT ANG 4POS .100 TIN
Datasheet	705530038 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.215" (5.45mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	150μin (3.81μm)
Contact Finish - Post	Tin
Insulation Material	Polyester, Glass Filled
Temperature Range - Operating	-40°C to 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	250V
Contact Finish Thickness - Post	150μin (3.81μm)
Applications	Automotive, General Purpose, Industrial, Medical
Win Source Part Number	1006905-705530038
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 705530038 CAD Model

Description

The Molex header connector is a high-quality connector designed for use in automotive, general purpose, industrial, and medical applications.

Design: shrouded 4 wall
Mounting Style: right angle through-hole
Pitch Mating: 2.54mm
Contact Finish: tin
Insulation Material: polyester, glass-filled
Insulation Color: black
Temperature Range: -40°C to 105°C
