Same model may have multiple batches, images only for reference.

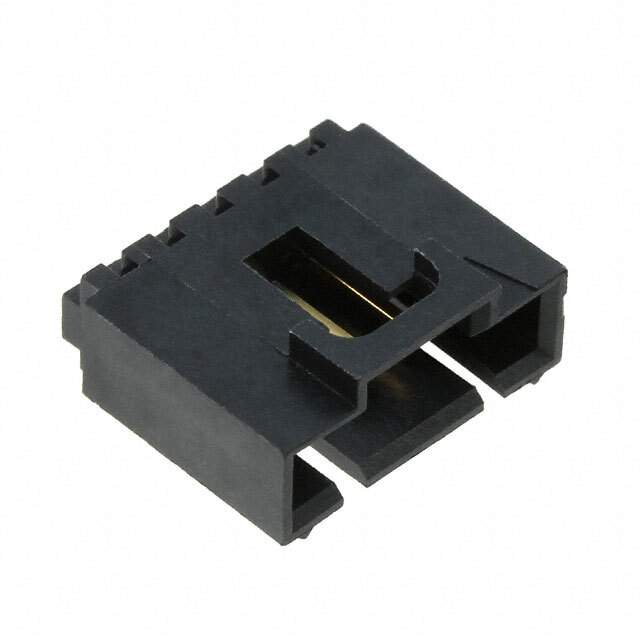

70553-0004 Real Image
Same model may have multiple batches, images only for reference.

70553-0004

Part No 70553-0004
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 5 POS 2.54mm Solder RA Side Entry Thru-Hole SL™ Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, UL
Color Black
Contact Material Bronze
Contact Plating Gold
Contact Resistance 30 mΩ
Country of Origin US
Current Rating 3 A
ELV Compliant
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Black
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Lead Free Lead Free
Lead Pitch 2.54 mm
Material Brass
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 5
Number of Contacts 5
Number of Pins 5
Number of Positions 5
Number of Rows 1
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1186184-70553-0004
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 70553-0004 CAD Model

Description

The Molex 1186184-70553-0004 is a limited supply electronic component that is part of the Circular Connectors - Housings category.

  • Supply: Limited
  • Category: Circular Connectors - Housings
  • Win Source Part Number: 1186184-70553-0004
  • Positions: 5
  • Pitch: 2.54mm
  • Gender: Male
  • Housing Material: Thermoplastic
  • Contact Plating: Gold
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Approvals: CSA and UL
  • Lead-Free: Yes
