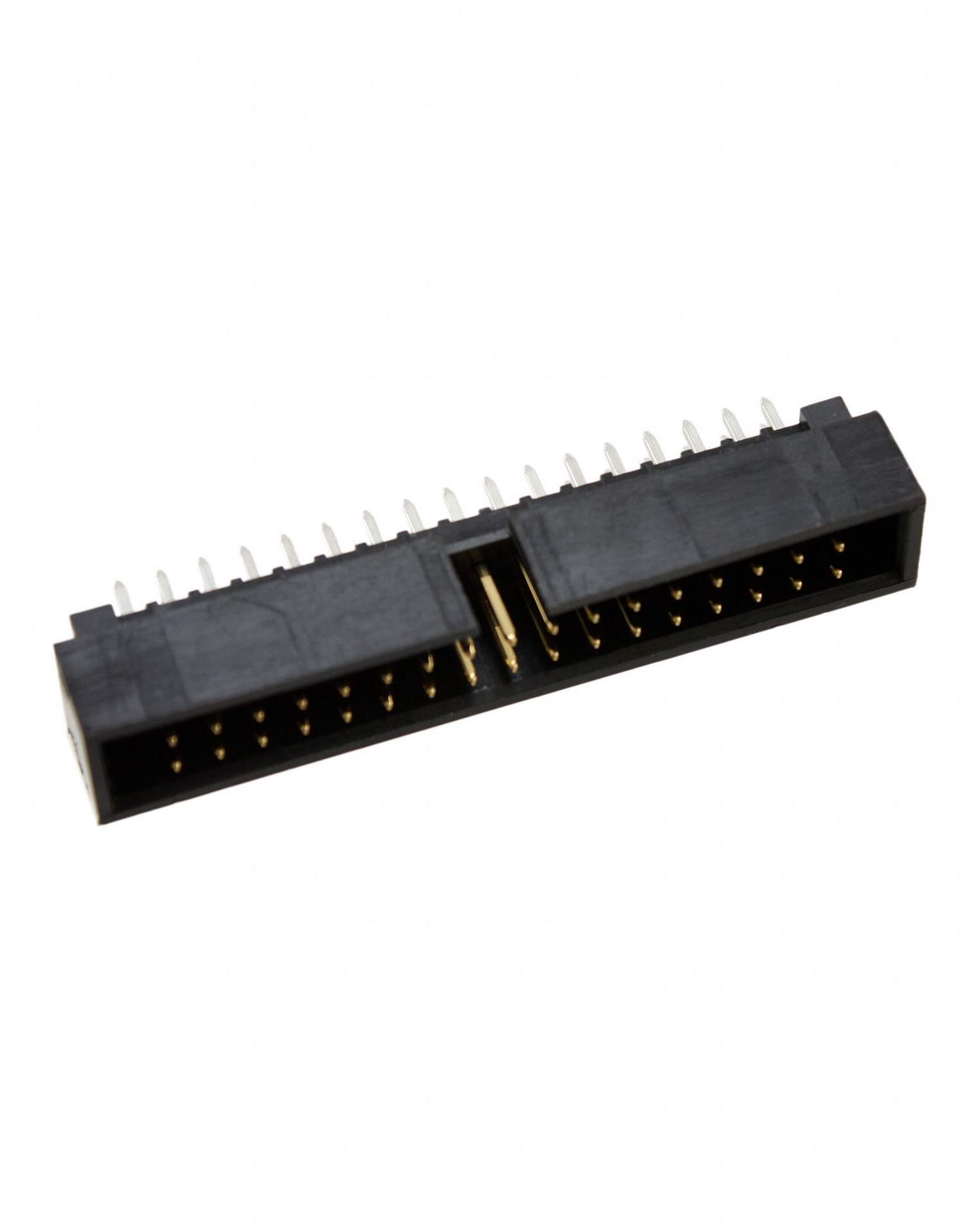

70246-3401

Name: 70246-3401
Brand: Molex, LLC
SKU: 1159586
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	70246-3401
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn Shrouded Header (4 Sides) HDR 34 POS 2.54mm Solder ST Thru-Hole C-Grid® Frame
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Gold
Contact Resistance	15 mΩ
Country of Origin	SK
Current Rating	2.5 A
Depth	8.89 mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Housing Color	Black
Housing Material	Polyester
Insulation Resistance	12 GΩ
Lead Free	Lead Free
Lead Length	3.43 mm
Lead Pitch	2.54 mm
Length	50.8 mm
Mating Post Length	6.1 mm
Max Operating Temperature	120 °C
Max Voltage Rating (AC)	250 V
Min Operating Temperature	-55 °C
Mount	Through Hole
Number of Circuits	34
Number of Contacts	34
Number of Positions	34
Number of Rows	2
Orientation	Vertical
Pitch	2.54 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS	Compliant
Row Spacing	2.54 mm
Termination	Solder
Voltage Rating	250 V
Voltage Rating (DC)	250 V
Win Source Part Number	1159586-70246-3401
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 70246-3401 CAD Model

Alternative Products

Description

The 1159586-70246-3401 is a black, through-hole, male connector with 34 positions and 2 rows and manufactured by Molex.

Positions: 34
Rows: 2
Pitch: 2.54 mm
Row Spacing: 2.54 mm
Termination: Solder
Contact Material: Bronze
Contact Plating: Gold
Voltage Rating: 250 V
Current Rating: 2.5 A
Contact Resistance: 15 mΩ
Insulation Resistance: 12 GΩ
Housing Material: Polyester
Housing Color: Black
Length: 50.8 mm
Depth: 8.89 mm
RoHS: Compliant
Maximum Operating Temperature: 120 °C
Minimum Operating Temperature: -55 °C
