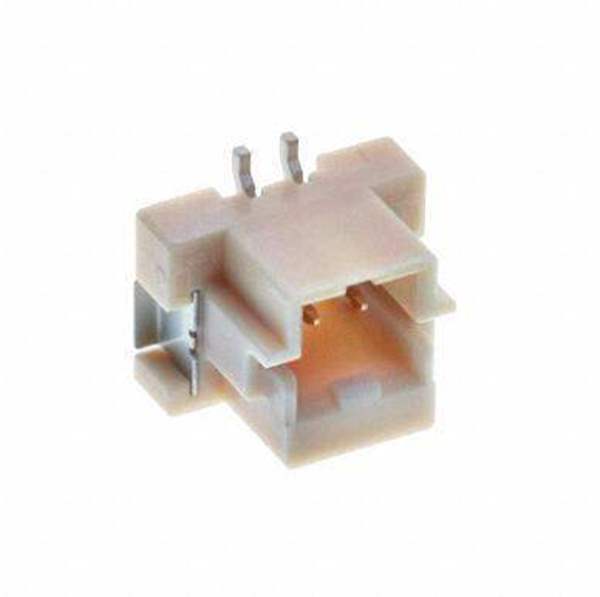

5600200230 Molex
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Product Status Active
Contact Type Male Pin
Number of Positions 2
Shrouding Shrouded - 4 Wall
Termination Solder
Fastening Type Latch Lock
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Win Source Part Number WS1209420-5600200230
Ultra Librarian 3D Model Ultra Librarian 5600200230 CAD Model

Description

Connector Header Surface Mount 2 position 0.079" (2.00mm)
